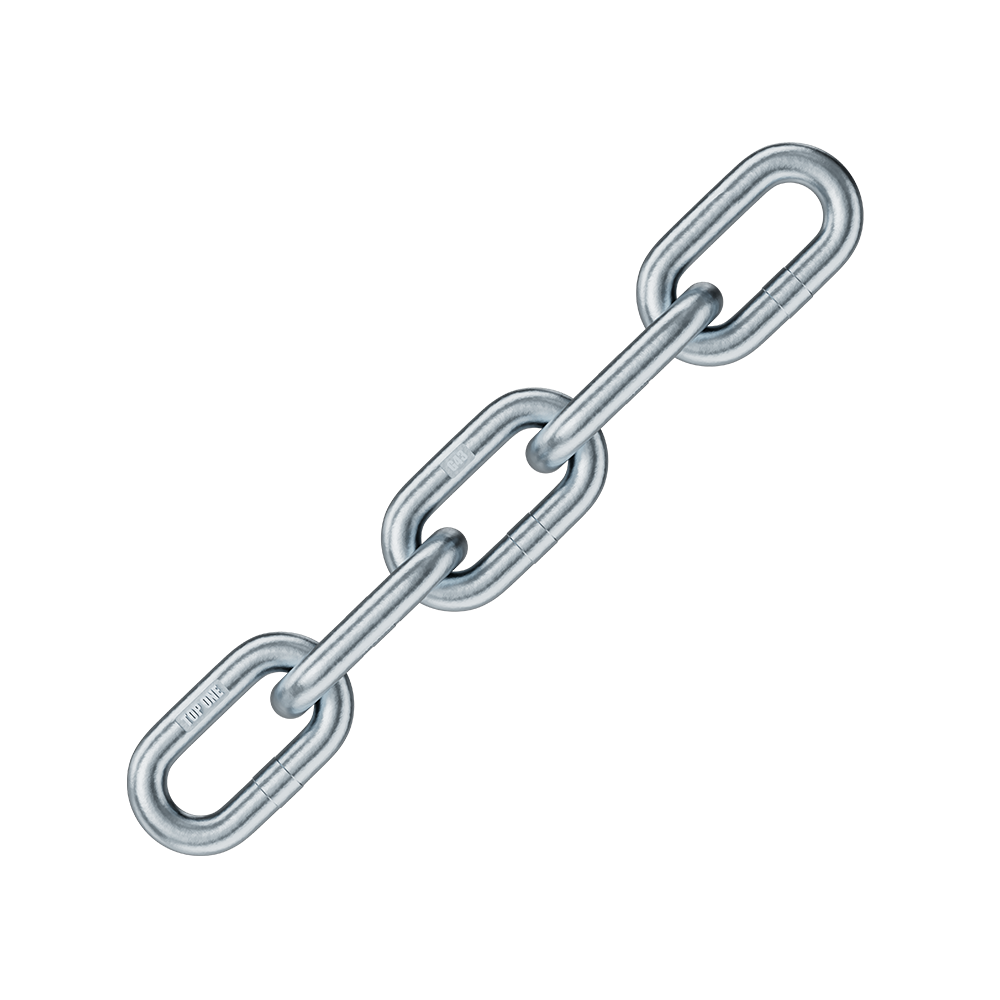

ASTM Grade 43 High Test Chain

Grade 43 High Test Chain also known as G4 or G40 chain conforms to ASTM A413/A413M standards. Suitable for industrial, construction, agricultural and logging operations. These chains are not designed and produced for overhead lifting purposes. They are tested to 2 times the working load before leaving the factory.

HOME > Products > ASTM Standard >

Introduction

Made of high quality carbon steel by resistance welding.The surface can be electro-galvanized or hot-dip galvanized. It is particularly suitable for use on marine vessels. It can be sold in bulk or in barrels.

Parameter

MEDIUM LINK CHAIN

Diameter		Working Load Limit		Proof Load		Breaking Load		Max. Length per 100 Links		Max. Weight per 100 ft
d		WLL		MPL		MBL		(inch)	(m)	(lbs)	(kg)
(inch)	(mm)	(lbs)	(kg)	(lbs)	(KN)	(lbs)	(KN)	(inch)	(m)	(lbs)	(kg)
1/4	7.1	2600	1180	4300	19.1	7750	34.5	98	2.49	84	38
5/16	8.7	3900	1770	6400	28.5	11600	51.6	110	2.79	120	54
3/8	10.3	5400	2450	8900	39.6	16200	72.1	134	3.40	176	80
7/16	11.9	7200	3260	11900	52.9	21500	95.6	140	3.55	230	104
1/2	13.5	9200	4170	15300	68.1	27600	122.8	150	4.06	300	136
5/8	16.7	14200	6200	21200	94.0	42400	188.0	194	4.92	425	193

Standards

！This product is strictly prohibited from being used for overhead lifting.

！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.

We follow standards：

A413/A413M

Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.

Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.

Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.

When mixing chain and components such as hooks and links, all should be rated at the work load limit of the lowest rated component or chain.

Ambient temperature during use:

Min.: -40 ℃

Max.: 200 ℃

If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
