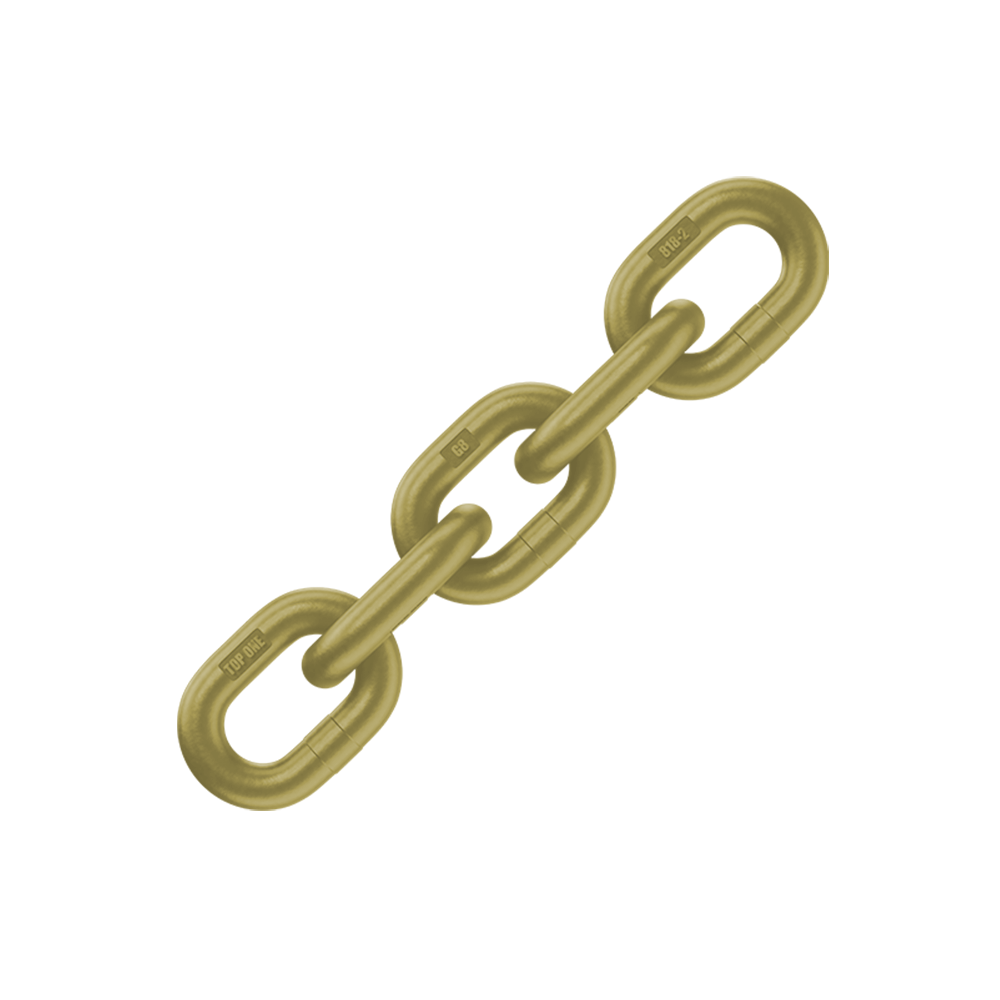

ASTM Short Link Grade 70 Transport Chain

TOPONE® can produce 100% ASTM A413 G70 chain, with regular sizes and Short Link options available.A high quality, high strength carbon steel chain, heat treated,Used for load securement.Not to be used in overhead lifting.Meets Department Of Transportation Regulations.The surface is yellow chromate color.TOPONE® Grade 70 Chain is the chain of choice for load binding applications. It is also well suited for tie-downs, towing and logging operations. Its strength to weight ratio exceeds that of Proof Coil and High Test chain.

HOME > Products > ASTM Standard >

ASTM Short Link Grade 70 Transport Chain

Introduction

TOPONE® Designed for use in cargo securement, towing and logging.Meets the latest revision of ASTM A413 specification.Quenched and tempered,proof tested Design factor 4 : 1 Yellow chromate zinc plated finish

Parameter

base64_image

Diameter		Pitch		Inside Width		Working Load Limit	Proof Load	Breaking Load	Weight
d		p		b1		WLL	MPL	MBL	(lbs/100ft)
(inch)	(mm)	(inch)	(mm)	(inch)	(mm)	(lbs)	(lbs)	(lbs)	(lbs/100ft)
1/4	7.0	0.980	25	0.472	12.0	3150	6300	12600	70
5/16	8.7	1.063	27	0.535	13.6	4700	9400	18800	113
3/8	10.3	1.181	30	0.571	14.5	6600	13200	26400	149
7/16	11.9	1.417	36	0.614	15.6	8750	17500	35000	211
1/2	13.5	1.535	39	0.748	19.0	11300	22600	45200	252
5/8	16.0	1.890	48	0.925	23.5	15800	31600	63200	375
3/4	20.0	2.362	60	1.102	28.0	24700	49400	98800	581

Standards

！This product is strictly prohibited from being used for overhead lifting.

！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.

We follow standards：

ASTM A413

Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.

Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.

Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.

When mixing chain and components such as hooks and links, all should be rated at the work load limit of the lowest rated component or chain.

Ambient temperature during use:

Min.: -40 ℃

Max.: 200 ℃

If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
