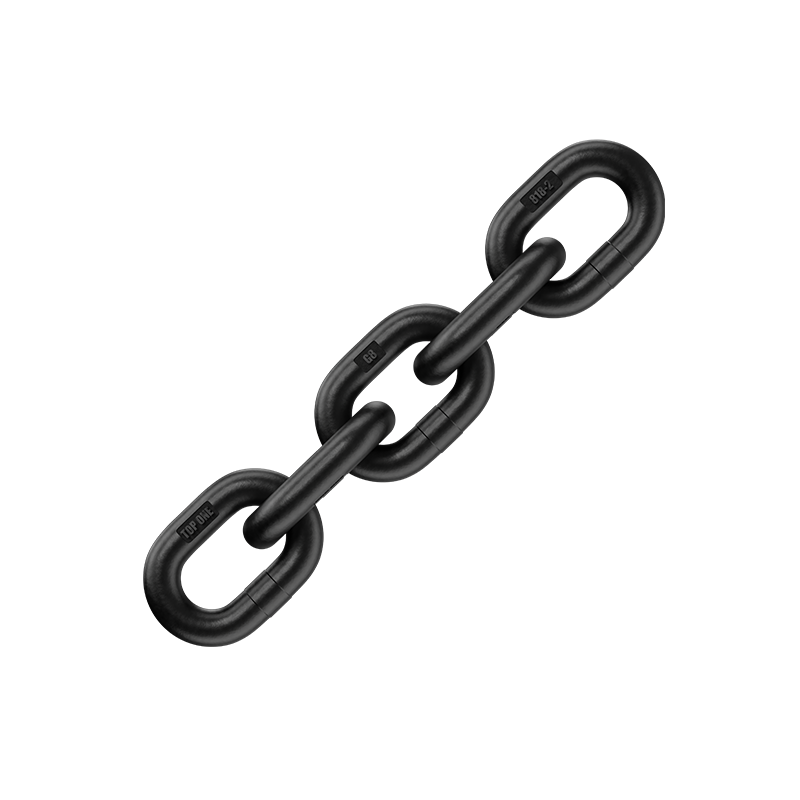

DIN 22252 Scraper Conveyor System Chain
TOPONE® uses DIN 22252 standard to produce round steel chain links for continuous conveyors and excavation equipment in the mining industry. The steel used to produce the welded round link chain contains alloy elements such as Cr Ni Mo. It can meet Grade D (1050MPa), Grade C++ (900MPa), and Grade C (800MPa).Suitable for Armored Face Conveyors (AFC), Beam Stage Loaders (BSL), road header machines, coal plows and other equipment that requires this type of chain.
Introduction
TOPONE® can provide round link alloy steel chains in accordance with DIN 22252 or PN-G-46701 or GB/T-12718 or GOST 25996 standard.
We can provide any surface hardness (carbonitriding or special tempering heat treatment,。Min,38 HRC,Max.64 HRC) to meet the underground mining needs of high hardness geology.
It is also available with chains with a strength of 1150MPa (Grade 110 chain). It is particularly suitable for coal seams with high economic value, and can greatly increase the amount of coal passing, thereby improving production efficiency.
Parameter
|
Dimension |
|||||
|
Chain Size d x p |
Diameter d |
Pitch P |
b1 min. |
b2 max. |
Weight |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg/m) |
|
14 x 50 |
14 ±0.4 |
50 ±0.5 |
17 |
48 |
4.0 |
|
18 x 64 |
18 ±0.5 |
64 ±0.6 |
21 |
60 |
6.6 |
|
19 x 64.5 |
19 ±0.6 |
64.5 ±0.6 |
22 |
63 |
7.4 |
|
22 x 86 |
22 ±0.7 |
86 ±0.9 |
26 |
73 |
9.5 |
|
24 x 86 |
24 ±0.7 |
86 ±0.9 |
28 |
79 |
11.6 |
|
24 x 87.5 |
24 ±0.7 |
87.5 ±0.9 |
28 |
79 |
11.5 |
|
26 x 92 |
26 ±0.8 |
92 ±0.9 |
30 |
85 |
13.7 |
|
30 x 108 |
30 ±0.9 |
108 ±1.1 |
34 |
97 |
18.0 |
|
34 x 126 |
34 ±1.0 |
126 ±1.3 |
38 |
110 |
22.7 |
|
38 x 126 |
38 ±1.1 |
126 ±1.4 |
42 |
121 |
30.1 |
|
38 x 137 |
38 ±1.1 |
137 ±1.4 |
42 |
121 |
29.0 |
|
42 x 137 |
42 ±1.1 |
137 ±1.4 |
48 |
137 |
36.9 |
|
42 x 146 |
42 ±1.1 |
146 ±1.5 |
48 |
137 |
36.0 |
|
Notice:
|
|||||
|
Paired Long Chain: Measuring length and Limit Tolerance chart |
|||||
|
Chain Size |
Measuring length |
Chain Length Limit Tolerance |
|||
|
d x p |
Link Quantity n |
n x p |
Limit Tolerance |
L ≤ 5000 |
L ＞ 5000 |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
22x86 |
11 |
946 |
±1.5 |
+2 / -0 |
+0.0004xl /-0 |
|
24x86 |
11 |
946 |
|||
|
24x87.5 |
11 |
962.5 |
|||
|
26x92 |
9 |
828 |
|||
|
30x108 |
9 |
972 |
|||
|
34x126 |
7 |
882 |
|||
|
38x137 |
7 |
959 |
|||
|
42x137 |
5 |
685 |
|||
|
The number of chains must be an odd number |
|||||
|
Paired Short Chain: Measuring length and Limit Tolerance chart |
|||||||||
|
Chain Size d x p |
Link Quantity n |
Width |
Radius |
||||||
|
5 |
7 |
9 |
11 |
13 |
15 |
Inside |
Outside |
||
|
Measuring length l |
b1 |
b2 |
r |
||||||
|
+2/-0 |
+2/-0 |
±1 |
±1 |
±1 |
±1 |
Min. |
Max. |
+2/-0 |
|
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
14x50 |
/ |
/ |
450 |
550 |
650 |
750 |
17 |
48 |
22 |
|
18x64 |
/ |
448 |
576 |
704 |
832 |
960 |
22 |
61 |
28.5 |
|
19x64.5 |
/ |
451.5 |
580.5 |
709.5 |
838.5 |
967.5 |
23 |
65 |
30.5 |
|
22x86 |
430 |
602 |
774 |
946 |
/ |
/ |
27 |
75 |
35.5 |
|
24x86 |
/ |
/ |
30 |
82 |
39 |
||||
|
24x87.5 |
437.5 |
612.5 |
787.5 |
962.5 |
/ |
/ |
30 |
82 |
39 |
|
26x92 |
460 |
644 |
828 |
1012 |
/ |
/ |
32 |
88 |
42 |
|
30x108 |
540 |
756 |
972 |
/ |
/ |
/ |
37 |
102 |
49 |
|
34x126 |
630 |
882 |
1134 |
/ |
/ |
/ |
42 |
116 |
56 |
|
Mechanical Properties |
|||||||
|
Chain Size d x p |
Chain Grade |
Test Force |
Breaking Force min. |
Elongation at test force max. |
Elongation at breaking force min. |
Deflection f min. |
Fatigue Resistance min. |
|
(mm) |
(KN) |
(KN) |
(%) |
(%) |
(mm) |
(cycles) |
|
|
14x50 |
B |
150 |
190 |
1.4 |
14 |
14 |
50000 |
|
C |
200 |
250 |
1.6 |
14 |
14 |
70000 |
|
|
C++ |
200 |
280 |
1.6 |
18 |
14 |
90000 |
|
|
D |
250 |
310 |
1.9 |
16 |
14 |
90000 |
|
|
18x64 |
B |
260 |
320 |
1.4 |
14 |
18 |
50000 |
|
C |
330 |
410 |
1.6 |
14 |
18 |
70000 |
|
|
C++ |
330 |
460 |
1.6 |
18 |
18 |
90000 |
|
|
D |
410 |
510 |
1.9 |
16 |
18 |
90000 |
|
|
19x64 19x64.5 |
B |
290 |
360 |
1.4 |
14 |
19 |
50000 |
|
C |
360 |
450 |
1.6 |
14 |
19 |
70000 |
|
|
C++ |
360 |
510 |
1.6 |
18 |
19 |
90000 |
|
|
D |
450 |
565 |
1.9 |
16 |
19 |
90000 |
|
|
22x86 |
B |
380 |
490 |
1.4 |
14 |
22 |
50000 |
|
C |
490 |
610 |
1.6 |
14 |
22 |
70000 |
|
|
C++ |
490 |
680 |
1.6 |
18 |
22 |
90000 |
|
|
D |
610 |
760 |
1.9 |
16 |
22 |
90000 |
|
|
24x86 24x87.5 |
B |
460 |
570 |
1.4 |
14 |
24 |
50000 |
|
C |
580 |
720 |
1.6 |
14 |
24 |
70000 |
|
|
C++ |
580 |
815 |
1.6 |
18 |
24 |
90000 |
|
|
D |
720 |
900 |
1.9 |
16 |
24 |
90000 |
|
|
26x92 |
B |
540 |
670 |
1.4 |
14 |
26 |
50000 |
|
C |
640 |
850 |
1.6 |
14 |
26 |
70000 |
|
|
C++ |
700 |
960 |
1.6 |
18 |
26 |
90000 |
|
|
D |
790 |
1060 |
1.9 |
16 |
26 |
90000 |
|
|
30x108 |
C |
850 |
1130 |
1.6 |
14 |
30 |
70000 |
|
C++ |
950 |
1280 |
1.6 |
18 |
30 |
90000 |
|
|
D |
1050 |
1400 |
1.9 |
16 |
30 |
90000 |
|
|
34x126 |
C |
1080 |
1450 |
1.6 |
14 |
34 |
70000 |
|
C++ |
1200 |
1650 |
1.6 |
18 |
34 |
90000 |
|
|
D |
1350 |
1800 |
1.9 |
16 |
34 |
90000 |
|
|
38x126 38x137 |
C |
1360 |
1810 |
1.6 |
14 |
38 |
70000 |
|
C++ |
1500 |
2040 |
1.6 |
18 |
38 |
90000 |
|
|
D |
1700 |
2270 |
1.9 |
16 |
38 |
90000 |
|
|
42x137 42x146 |
C |
1660 |
2220 |
1.6 |
14 |
42 |
70000 |
|
C++ |
1800 |
2500 |
1.6 |
18 |
42 |
90000 |
|
|
D |
2070 |
2770 |
1.9 |
16 |
42 |
90000 |
|
Standards
！This product is not recommended for overhead lifting.
！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.
！Fatigue resistance T [cycles] and impact force KV [J] according to DIN 22252 standard
！Enhanced performance chains are not recommended for use in harsh, corrosive environments, as pitting and friction martensite may lead to operational failures.
We follow standards：
DIN 17115
Acc. to DIN 22252 or PN-G-46701 or GB/T-12718 or GOST 25996
DIN 50100
DIN EN ISO 148
DIN EN ISO 6506
Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.
Ambient temperature during use:
Min.: -40 ℃
Max.: 200 ℃
If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
Q & A
- I don't see the size I want in the datasheet, can I get a custom size?
- Yes, please contact our sales. They will work with our technicians to come up with a solution for you based on your application scenario, which is usually free!
- How is your hardness distributed in the chain?
- We allow different hardnesses in a single link, that a hard crown and a lower hardness plasticized leg.
- Which anti-corrosion surface is suitable for me? Because the working environment of longwall mining is harsh and corrosive.
- We have many anti-corrosion methods to choose from, such as anti-corrosion oil, electrostatic spraying, hot-dip galvanizing. Please note that any anti-corrosion will affect the mechanical properties of the chain.
- What is the normal surface of your chain delivery?
- Usually natural, dry, black condition.
- Can I use it for Drag chain conveyors, Haulage Systems, Submerged Ash handling conveyors, Dredge Conveyors, Scrapper Coal Feeders, Drag Chain Feeder?
- Yes, we can provide absolutely calibrated and matched chains. This is often applied to power plant slag removal, cement plant material lifting, etc.
