DIN 22255 Flat Link Mining Chain

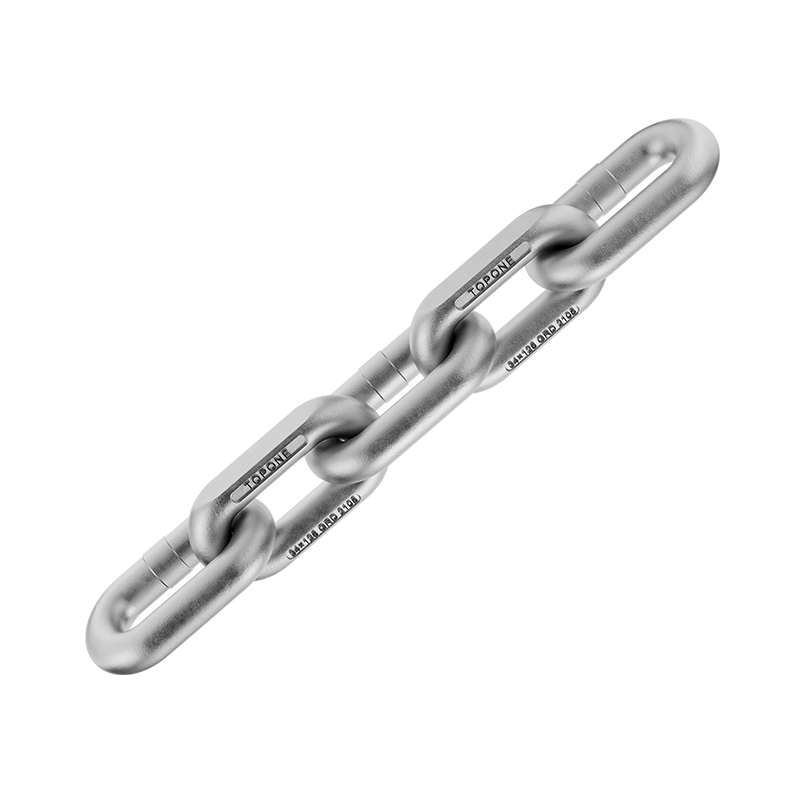

TOPONE® produces Flat link chains for use in continuous conveyors in mining Complies with DIN22255 dimensions and mechanical properties. Flat link mining chains may replace currently used round link chains of the same diameter, without the need of changing other assembly components.Especially suitable for Armored Face Conveyors, Beam Stage Loaders, road headers.

DIN 22255 Flat Link Mining Chain
Introduction

DIN 22255 flat link mining chains can replace the currently used DIN 22252 round link chains of the same diameter without changing other assembly parts. Compared with round link chains, flat link mining has a larger contact area, which reduces the risk of friction martensite and thus increases service life.In addition, since the outer height of the flat link mining chain (DIN22255) is smaller than the outer height of the round link mining chain (DIN22252), the flat link mining chain can be used as a diameter reduced by one order of magnitude. For example: Flat link chain 42x137 is of the height c2 = max 115 which corresponds to round link chain 38x137 b2 = max 121.

Parameter

914cf498eef4d7beeb87d8035bcf8e3


Dimension

Chain Size

Diameter

Pitch

Round Horizontal Link

Flat Vertical Link

e max

Weight

d x p

(mm)

d

(mm)

P

(mm)

b1 min,

(mm)

b2 max.

(mm)

c1 min.

(mm)

c2 max.

(mm)

(mm)

(kg)

26x92

26 ±0.8

92 ±0.9

30.1

87

30

75

30.0

13.7

30x108

30 ±0.9

108 ±1.1

34.1

99

34

87

34.0

18.0

34x126

34 ±1.0

126 ±1.3

38.1

111

38

99

38.0

22.7

38x126

38 ±1.1

126 ±1.3

42.1

123

42

111

42.0

30.1

38x137

38 ±1.1

137 ±1.4

42.1

123

42

111

42.0

29.0

38x146

38 ±1.1

146 ±1.5

42.1

123

42

111

42.0

27.6

42x137

42 ±1.1

137 ±1.4

48.6

139

46

115

48.5

37.0

42x146

42 ±1.1

146 ±1.5

48.6

139

46

115

48.5

36.0

48x152

48 ±1.4

152 ±1.5

62

163

54

127

56.0

47.0


Mechanical   Properties

Chain   Size

d x p

Chain   Grade

Test   Force

Breaking

Force

min.

Elongation   at test force max.

Elongation

at   breaking force

min.

Fatigue

Resistance

min.

(mm)

(KN)

(KN)

(%)

(%)

(cycles)

26x92

C

637

850

1.6

11

70000

C++

700

970

1.6

14

90000

D

740

1060

1.4

11

90000

30x108

C

848

1130

1.6

11

70000

C++

950

1280

1.6

14

90000

D

990

1400

1.4

11

90000

34x126

C

1090

1450

1.6

11

70000

C++

1200

1650

1.6

14

90000

D

1270

1800

1.4

11

90000

38x126

C

1360

1820

1.6

11

70000

C++

1500

2040

1.6

14

90000

D

1590

2270

1.4

11

90000

38x137

C

1360

1820

1.6

11

70000

C++

1500

2040

1.6

14

90000

D

1590

2270

1.4

11

90000

38x146

C

1360

1820

1.6

11

70000

C++

1500

2040

1.6

14

90000

D

1590

2270

1.4

11

90000

42x137

C

1660

2220

1.6

11

70000

C++

1800

2500

1.6

14

90000

D

1940

2770

1.4

11

90000

42x146

C

1660

2220

1.6

11

70000

C++

1800

2500

1.6

14

90000

D

1940

2770

1.4

11

90000

48x152

C

1900

2900

1.6

11

70000

C++

2350

3255

1.6

14

90000

D

2530

3600

1.4

11

90000

Standards

!This product is not recommended for overhead lifting.

!Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.

Fatigue resistance T [cycles] and impact force KV [J] according to DIN 22255 standard

!Enhanced performance chains are not recommended for use in harsh, corrosive environments, as pitting and friction martensite may lead to operational failures.

We follow standards:

DIN 17115

Acc. to DIN 22255 or MT/T 929

DIN 50100

DIN EN ISO 148

DIN EN ISO 6506

Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.





Ambient temperature during use:

Min.: -40 ℃

Max.: 200 ℃

If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.

Q & A
Our chains are mostly exported to more than 30 countries
both in European and Asian markets.
