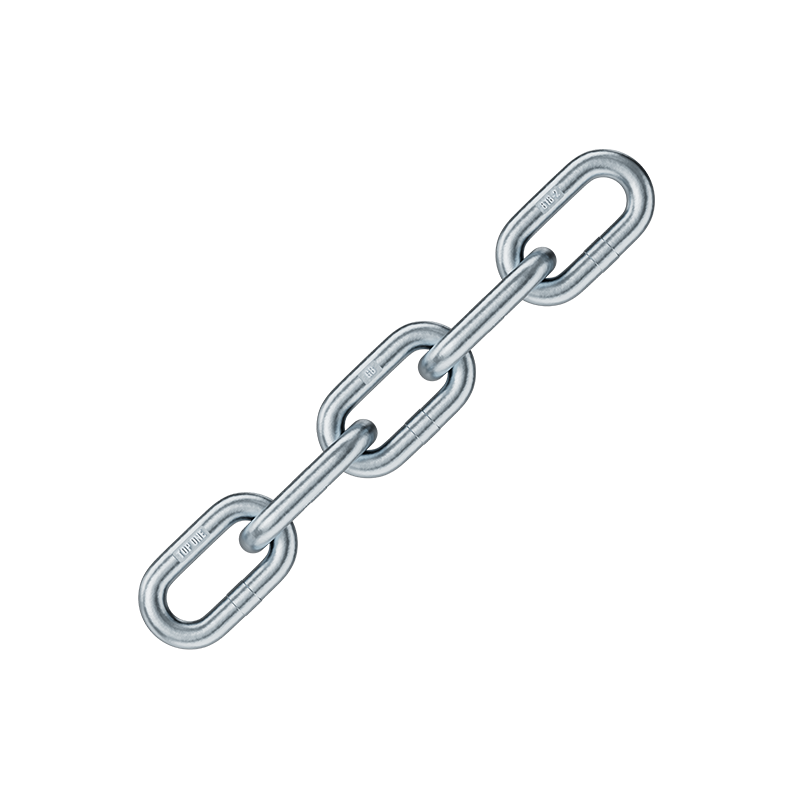

Suitable for any kind of fixing in the nautical, construction, agricultural and metalworking fields, the DIN 5685 chains are available in the following models:
“A” short link chain, made in S235JR iron or in stainless steel (AISI 316 or 304).
Diameter |
Pitch |
Inside Width |
Working Load Limit |
Weight |
||
d |
Tolerance |
p |
Tolerance |
b1 |
WLL |
(kg/m) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
2 |
±0.10 |
12 |
±0.6 |
3.5 |
20 |
0.07 |
2.5 |
±0.10 |
14 |
±0.7 |
4.5 |
30 |
0.11 |
3 |
±0.20 |
16 |
±0.8 |
5.5 |
40 |
0.17 |
3.5 |
±0.20 |
18 |
±0.9 |
6.0 |
60 |
0.23 |
4 |
±0.20 |
19 |
±1.0 |
7.0 |
80 |
0.30 |
5 |
±0.30 |
21 |
±1.1 |
9.0 |
125 |
0.50 |
6 |
±0.30 |
24 |
±1.2 |
11.0 |
160 |
0.73 |
7 |
±0.40 |
28 |
±1.4 |
12.0 |
220 |
0.99 |
8 |
±0.40 |
32 |
±1.6 |
14.0 |
320 |
1.30 |
10 |
±0.50 |
40 |
±2.0 |
18.0 |
500 |
2.00 |
13 |
±0.70 |
52 |
±2.6 |
23.0 |
800 |
3.40 |
