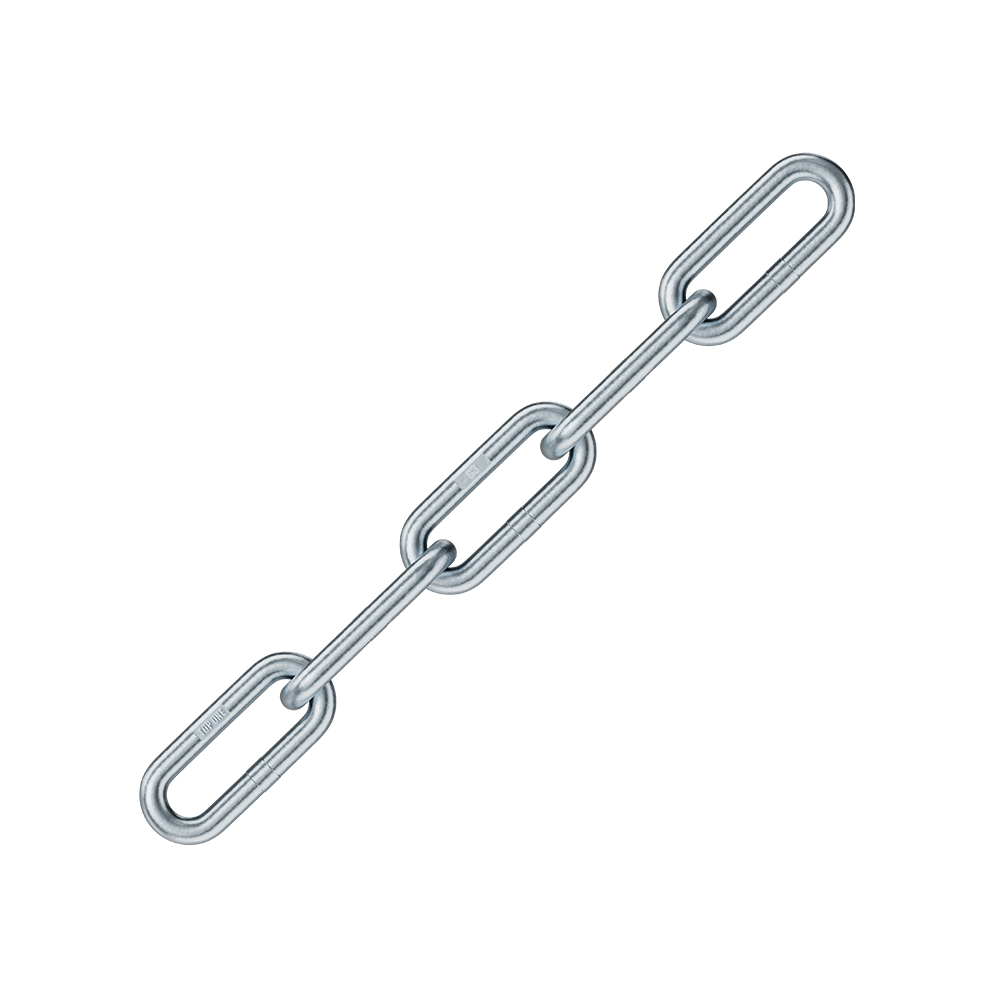

DIN 763 Grade 30 Chain

TOPONE® can produce long link steel chain in accordance with DIN 763 standard. We can also produce extra long link chain pitch 8D. Can provide Self color and hot dipped galvanized and electro galvanized finish. Suitable for lashing or safety guardrail, etc.

HOME > Products > DIN Standard >

Introduction

TOPONE® can provide Grade 80 chain for ocean-going vessels or heavy cargo lashing. The longer the inner length of the chain, the lighter the weight per meter. The most cost-effective size. This product is strictly prohibited from being used for overhead lifting.

Parameter

Long link chain

Diameter d	Pitch p	Outside b2 (Max)	Working Load Limited	Proof Load	Min Breaking Load	Weight per meter
(mm)	(mm)	(mm)	(kg)	(KN)	(KN)	(Kg/m)
4 ±0.5	32 ±1.5	16 ±0.8	200	5	8	0.27
5 ±0.5	35 ±1.8	20 ±1.0	320	8	12.5	0.43
6 ±0.5	42 ±2.0	24 ±1.2	400	10	16	0.63
7 ±0.5	49 ±2.5	28 ±1.4	630	16	25	0.86
8 ±0.5	52 ±2.5	32 ±1.6	800	20	32	1.10
9 ±0.5	59 ±3.0	36 ±1.8	1000	25	40	1.41
10 ±1.0	65 ±3.2	40 ±2.0	1250	32	50	1.75
11 ±1.0	72 ±3.4	44 ±2.0	1600	40	63	2.11
12 ±1.0	78 ±3.6	48 ±2.3	1800	45	75	2.55
13 ±1.0	82 ±4.0	52 ±2.5	2000	50	80	2.95
16 ±1.0	100 ±5.0	64 ±3.2	3200	80	125	4.45
18 ±1.0	113 ±5.2	70 ±3.2	4000	100	160	5.65
20 ±1.0	120 ±6.0	75 ±3.8	5000	125	200	7.00
22 ±1.0	127 ±6.0	82 ±4.0	6300	160	250	8.55
25 ±1.0	140 ±6.6	85 ±4.2	8000	200	320	10.90
28 ±1.0	152 ±7.0	96 ±4.7	10000	250	400	13.90
32 ±1.0	171 ±7.8	108 ±5.2	12500	320	500	18.20

Standards

！This product is strictly prohibited from being used for overhead lifting.

！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.

We follow standards：

DIN 17115

DIN 763

Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.

Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.

Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.

When mixing chain and components such as hooks and links, all should be rated at the work load limit of the lowest rated component or chain.

Ambient temperature during use:

Min.: -40 ℃

Max.: 200 ℃

If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
