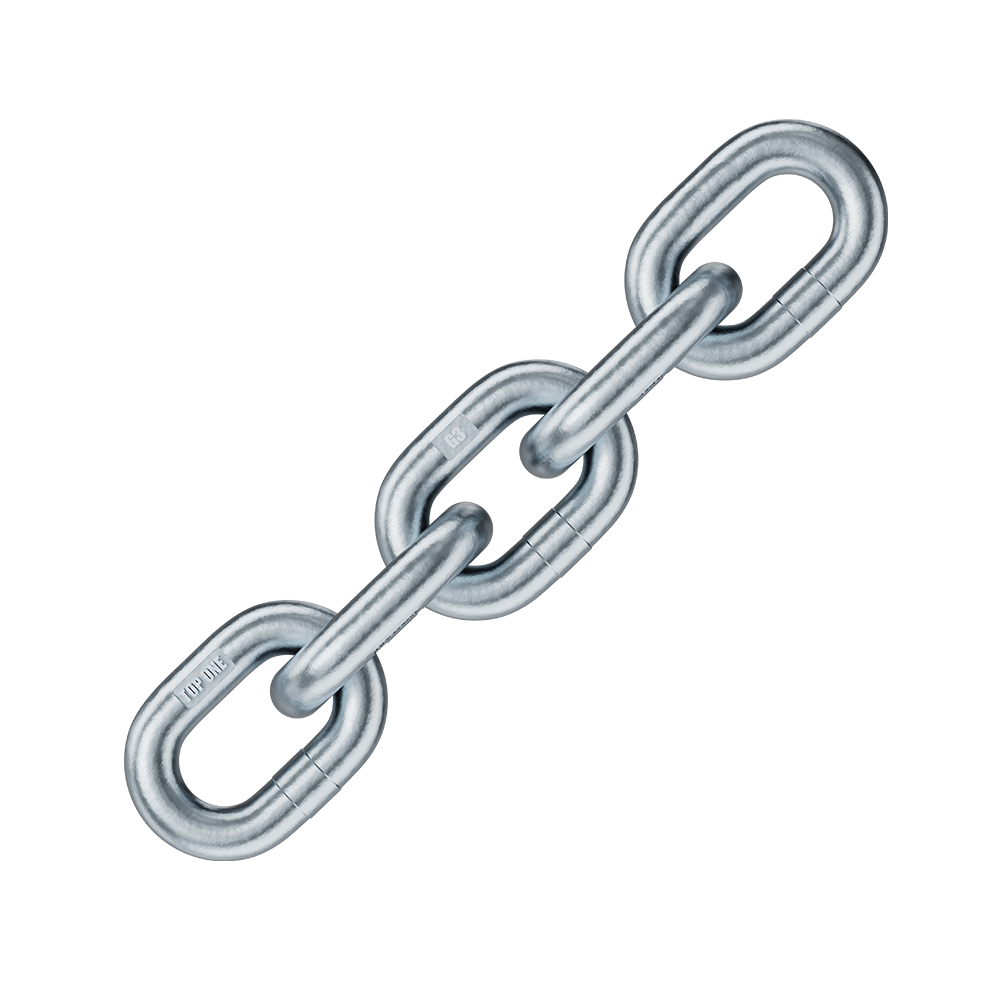

TOPONE® can provide Self color and hot dipped galvanised and electro galvanised finish . Calibrated and tested grade 3 round steel short link chains.For use in all industrial sectors.Special chains also available in grades 4,5, 6,7,8,10 and hardened surfaces (MAX 64HRC)
DIN 766 short link chain for winches or anchor chains on small vessels. Calibrated to fit perfectly on the capstan sprocket. Available in bulk or drums.This product is strictly prohibited from being used for overhead lifting.
Diameter mm |
Pitch mm |
Width mm |
Working Load Limited |
Proof Load |
Min Breaking Load |
Weight per Meter |
|
d |
p |
Inside b1 (Min) |
Outside b2 (Max) |
WLL |
MPL |
MBL |
(Kg/m) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
(KN) |
(KN) |
|
2 ±0.2 |
12 +0.2/-0.2 |
3.5 |
7.5 |
47 |
1.17 |
1.8 |
0.07 |
3 ±0.2 |
16 +0.2/-0.2 |
4.2 |
11.0 |
105 |
2.73 |
4.2 |
0.16 |
4 ±0.2 |
16 +0.3/-0.2 |
4.8 |
13.6 |
200 |
5 |
8 |
0.32 |
5 ±0.2 |
18.5 +0.4/-0.2 |
6.0 |
17.0 |
320 |
8 |
12.5 |
0.5 |
6 ±0.2 |
18.5 +0.4/-0.2 |
7.2 |
20.4 |
400 |
10 |
16 |
0.8 |
7 ±0.3 |
22 +0.4/-0.2 |
8.4 |
23.8 |
630 |
16 |
25 |
1.1 |
8 ±0.3 |
24 +0.4/-0.2 |
9.6 |
27.2 |
800 |
20 |
32 |
1.4 |
9 ±0.4 |
27 +0.5/-0.3 |
10.8 |
30.6 |
1000 |
25 |
40 |
1.8 |
10 ±0.4 |
28 +0.5/-0.3 |
12.0 |
36.0 |
1250 |
32 |
50 |
2.3 |
11 ±0.4 |
31 +0.5/-0.3 |
13.2 |
40.0 |
1600 |
40 |
63 |
2.7 |
12 ±0.3 |
36 +0.6/-0.3 |
14.4 |
40.8 |
1800 |
45 |
75 |
3.1 |
13 ±0.5 |
36 +0.6/-0.3 |
15.6 |
47.0 |
2000 |
50 |
80 |
3.9 |
14 ±0.6 |
41 +0.7/-0.3 |
16.8 |
50.0 |
2500 |
63 |
100 |
4.4 |
16 ±0.6 |
45 +0.8/-0.4 |
19.2 |
58.0 |
3200 |
80 |
125 |
5.8 |
18 ±0.9 |
50 +0.8/-0.4 |
21.6 |
61.2 |
4000 |
100 |
160 |
7.4 |
19 ±0.9 |
53 +0.9/-0.4 |
22.8 |
64.6 |
4250 |
110 |
170 |
8.0 |
20 ±1.0 |
56 +1.0/-0.5 |
24.0 |
72.0 |
5000 |
125 |
200 |
9.0 |
23 ±1.2 |
64 +1.1/-0.5 |
27.6 |
83.0 |
6300 |
160 |
250 |
12.0 |
26 ±1.3 |
73 +1.2/-0.6 |
31.2 |
94.0 |
8000 |
200 |
320 |
15.0 |
28 ±1.4 |
78 +1.3/-0.6 |
33.6 |
101.0 |
10000 |
250 |
400 |
18.0 |
30 ±1.5 |
84 +1.4/-0.7 |
36.0 |
108.0 |
11200 |
280 |
450 |
20.0 |
32 ±1.6 |
90 +1.5/-0.7 |
38.4 |
115.0 |
12500 |
320 |
500 |
23.0 |
36 ±1.8 |
101 +1.7/-0.8 |
43.2 |
130.0 |
16000 |
400 |
630 |
29.0 |
40 ±2.0 |
112 +1.9/-0.8 |
48.0 |
144.0 |
20000 |
500 |
800 |
35.0 |
42 ±2.1 |
118 +2.0/-1.0 |
50.0 |
151.0 |
22400 |
560 |
900 |
40.0 |
!This product is strictly prohibited from being used for overhead lifting.
!Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.
We follow standards:
DIN 17115
DIN 766
Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.
Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.
Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.
When mixing chain and components such as hooks and links, all should be rated at the work load limit of the lowest rated component or chain.
Ambient temperature during use:
Min.: -40 ℃
Max.: 200 ℃
If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
