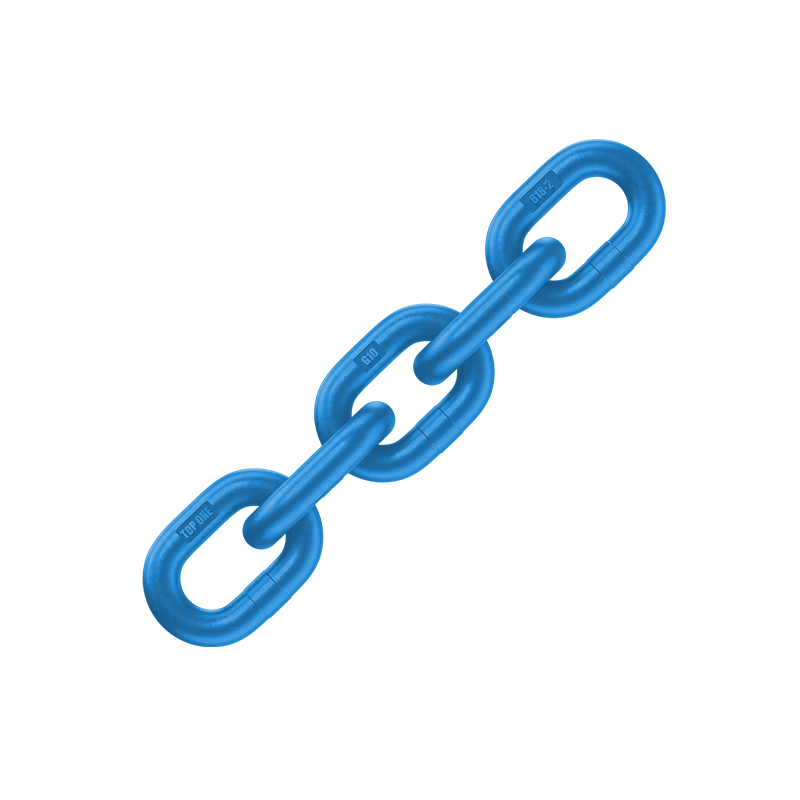

DIN Pas 1061 Grade 100 Chain

High quality alloy steel chain with medium tolerance. Can be used for Overhead Lifting.

The material contains a higher proportion of CR, NI, MO and other alloy elements.

At the same weight, the strength is 25% of the G80 chain.

Fully meets the requirements of PAS 1061/NACM2010 G100.

Anti-rust treatments such as electrophoresis, electroplating, and powder coating can be performed.

HOME > Products > DIN Standard >

Introduction

TOPONE® Grade 100 chain has the highest breaking load and elongation. It is very suitable for overhead lifting. The best materials and the best heat treatment make our Grade 100 chain meet the requirements of DIN PAS 1061 standard. The elongation of up to 25% ensures the safety of the chain in some extreme situations.

Parameter

Lifting chain drawings

Diameter	Pitch		Inside Width min.	Outside Width max.	Working Load Limited	Proof Load	Breaking Load	Weight
d	p	Tolerance	b1	b2	WLL	MPL	MBL	(Kg/m)
(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	(KN)	(KN)	(Kg/m)
4	12	±0.4	5.2	14.8	630	15.7	25.1	0.36
5	15	±0.5	6.5	18.5	1000	24.5	39.3	0.56
6	18	±0.5	7.8	22.2	1400	35.3	56.5	0.8
7	21	±0.6	9.1	25.9	1900	48.1	77.0	1.1
8	24	±0.7	10.4	29.6	2500	62.8	101	1.5
10	30	±0.9	13.0	37.0	4000	98.1	157	2.3
13	39	±1.2	16.9	48.1	6700	166	265	3.9
16	48	±1.4	20.8	59.2	10000	251	402	5.8
18	54	±1.6	23.4	66.6	12500	318	509	7.4
19	57	±1.7	24.7	70.3	14000	354	567	8.1
20	60	±1.8	26.0	74.0	16000	393	628	9.0
22	66	±2.0	28.6	81.4	19000	475	760	11.0
23	69	±2.1	29.9	85.1	20000	519	831	12.0
26	78	±2.3	33.8	96.2	26500	664	1060	15.0
28	84	±2.5	36.4	104.0	30500	769	1230	19.5
32	96	±2.9	41.6	118.0	10500	1005	1610	25.4

Standards

！This product can be used for Overhead Lfting. It is strictly prohibited to use it in excess of the working load (WLL).

！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.

We follow standards：

DIN Pas 1061

DIN EN818-1

DIN EN818-7

Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.

Chain lifted loads should never be transported or suspended over people.

Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.

Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.

Q & A

What is a grade 100 chain (G100 chain)? What is special about it?: Grade 100 chain is also called g100 chain or g10 chain. G100 chain is about 25% better than ordinary alloy lifting chain.

When should I use a G100 chain?: First of all, you can use grade 100 chain in any situation. You can use it for overhead lifting, heavy lifting, trailer transport fixing, log lashing, bulk carrier lashing. As the mainstream and highest performance chain on the market, you can use it in any work scenario.

What should I pay attention to when using Grade 100 chain? Is it safe?: You need to pay attention to whether the working tension exceeds the maximum working safety load we specify. The maximum working safety load we recommend is not higher than one-fourth of the chain breaking load. Each link has passed the test of 2.5 times the working load before leaving the factory. So it is undoubtedly safe to use it within the normal working load range.

Is Grade 100 chain stronger than Grade 80?: Grade 100 chain has a significantly higher strength-to-weight ratio than grade 80 chain (approximately 25% higher), and the surface material of grade 100 chain is also slightly harder, which provides some advantages in terms of wear resistance.

I don't see the size I want in the datasheet, can I get a custom size?: Yes, please contact our sales staff. They will work with our technicians to propose a solution for you based on your application scenario, which is usually free of charge!
