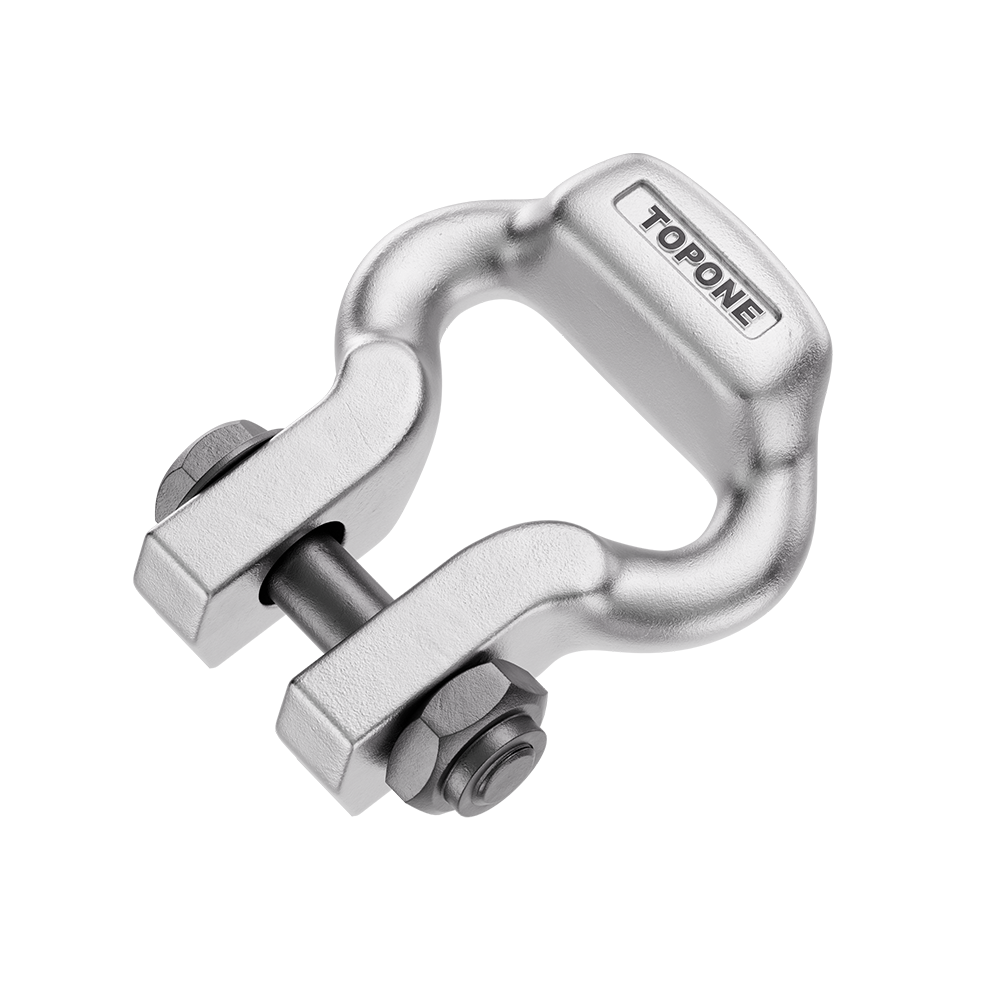

DIN 22253 Open Connecting Link

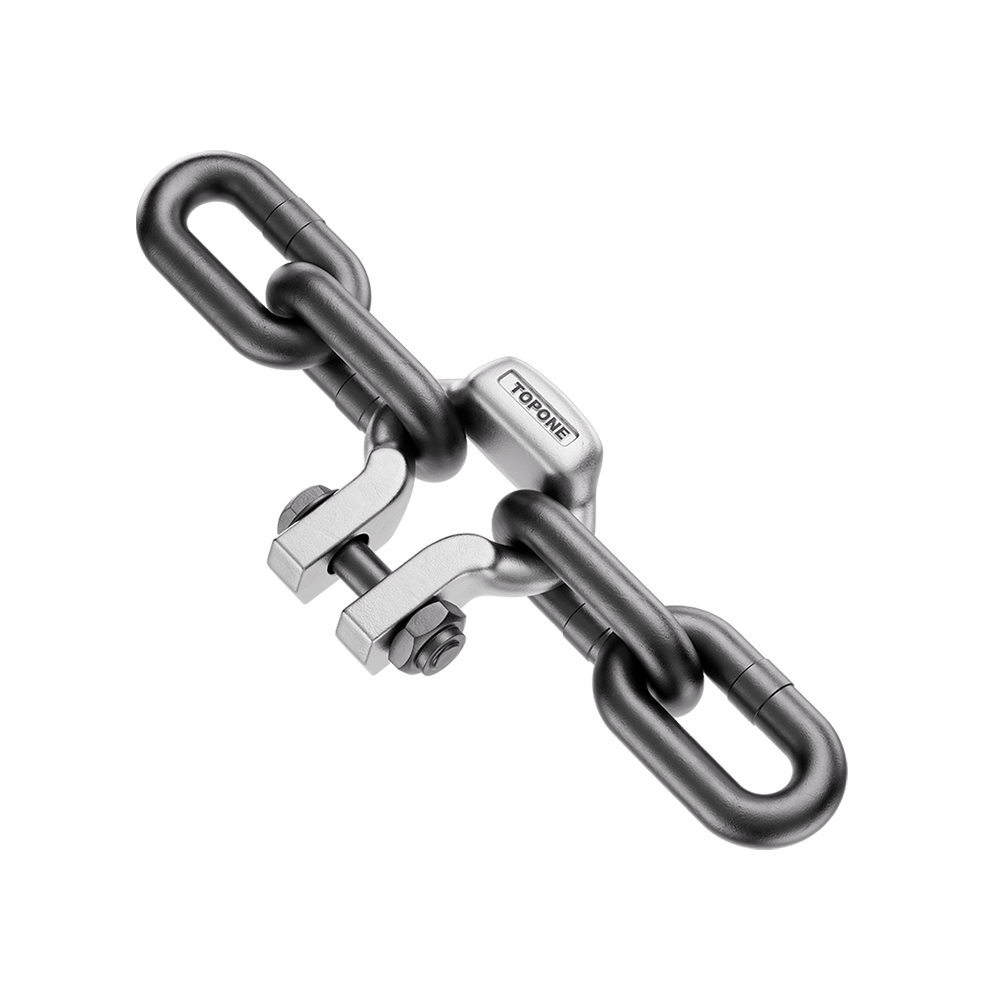

DIN 22253 Open Link produced by TOPONE®, also known as Mining Chain Connectors, Outboard Connector, Mining Chain Connecting Links, Mining Chain Shackles. used for scraper conveyors in underground mining facilities and other industrial conveyors.It is forged from alloy steel containing elements such as Cr and Ni.100% tested before leaving the factory.
Introduction
TOPONE® products comply with DIN 22253,PN-G-46696,MT/T71-1997. The surface is shot blasted and can be customized with double holes or single holes.
Parameter
|
Dimension |
|||||||||||
|
Chain Size |
a |
t |
c |
b |
e (+1/-2) |
l1 |
m (0/-1) |
n (0/-1) |
p (+1/0) |
f (+1/-0.5) |
g (+1/-1.5) |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
14x50 |
15 (+0.7/-0.5) |
50 (+0.8/-0.3) |
79 ±1 |
17 +0.5 |
78 |
17.5 (+1/0) |
15 |
32 |
17 |
51 |
29 |
|
18x64 |
19 (+1.0/-0.5) |
64 (+0.9/-0.3) |
101 ±1 |
21 +0.5 |
100 |
20.5 (+1/0) |
19 |
43 |
37 |
55 |
40 |
|
19x64.5 |
20 (+1.0/-0.5) |
64.5 (+0.9/-0.3) |
105 ±1 |
21 +0.5 |
100 |
20.5 (+1/0) |
20 |
43 |
37 |
55 |
41 |
|
22x86 |
23 (+1.0/-0.5) |
86 (+1.3/-0.4) |
132 ±2 |
25 +1.0 |
133 |
24.5 (+1/0) |
23 |
52 |
44 |
75 |
46 |
|
24x86 |
25 (+1.0/-0.5) |
86 (+1.3/-0.4) |
136 ±2 |
25 +1.0 |
133 |
26 (+1/0) |
25 |
53 |
44 |
78 |
55 |
|
26x92 |
27 (+1.0/-0.5) |
92 (+1.4/-0.5) |
146 ±2 |
28 +1.0 |
141 |
28 (+1.5/0) |
27 |
58 |
44 |
85 |
56 |
|
30x108 |
32 (+1.0/-0.5) |
108 (+1.6/-0.5) |
172 ±2 |
31 +1.0 |
159 |
32 (+1.5/0) |
32 |
70 |
44 |
100 |
59 |
|
Mechanical Properties |
||||||
|
Chain Size |
Test Force |
Breaking Force |
||||
|
Grade B |
Grade C |
DIN 22253 |
Grade B |
Grade C |
DIN 22253 |
|
|
(mm) |
(KN) |
(KN) |
(KN) |
(KN) |
(KN) |
(KN) |
|
14x50 |
135 |
180 |
185 |
170 |
225 |
212 |
|
18x64 |
230 |
300 |
305 |
290 |
370 |
351 |
|
19x64.5 |
260 |
325 |
340 |
325 |
405 |
391 |
|
22x86 |
/ |
440 |
456 |
/ |
550 |
525 |
|
24x86 |
410 |
490 |
507 |
510 |
650 |
588 |
|
26x92 |
/ |
/ |
595 |
/ |
/ |
690 |
|
30x108 |
/ |
/ |
750 |
/ |
/ |
869 |
Standards
！This product is not for overhead lifting.
！Any surface coating will affect the mechanical properties of the open connecting link.Please ask staff for details.
We follow standards：
Acc. to DIN 22253,PN-G-46696,MT/T71-1997.
Ambient temperature during use:
Min.: -40 ℃
Max.: 200 ℃
If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
