DIN 745&DIN 5699 Bucket Links For Conveyors

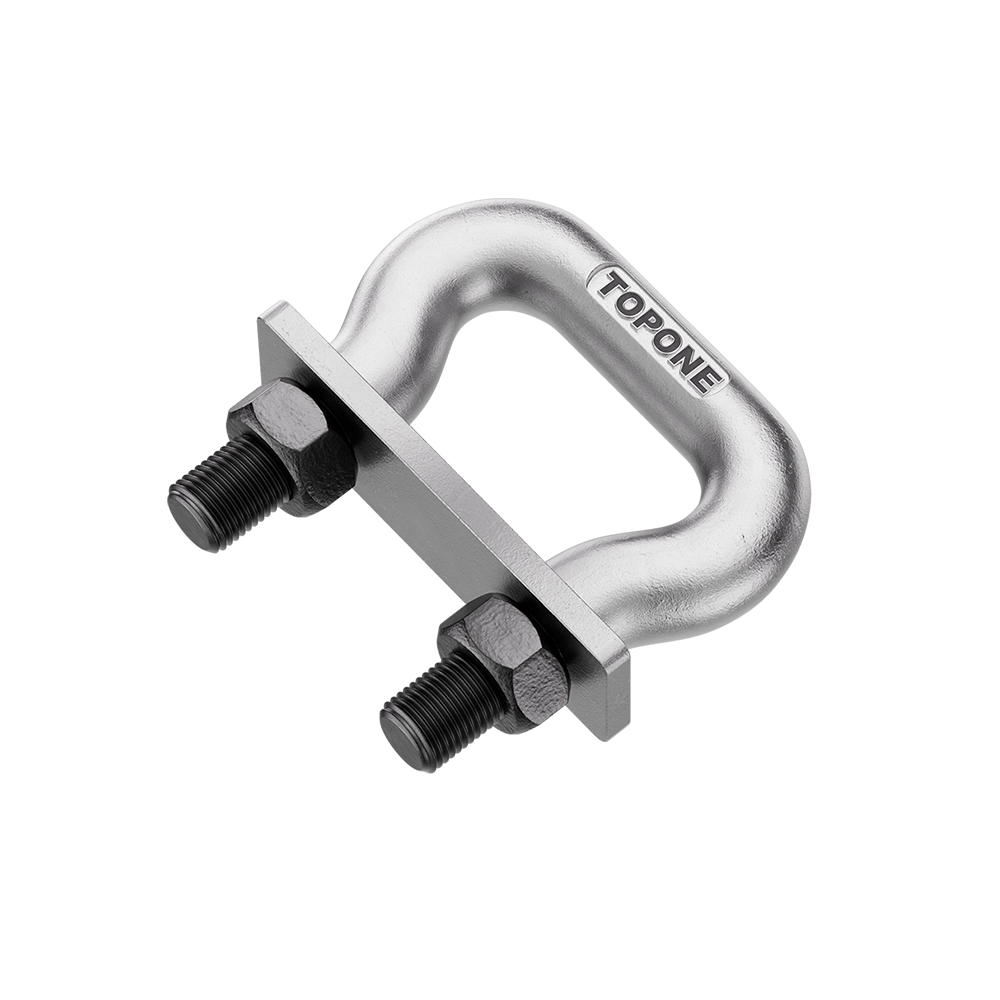

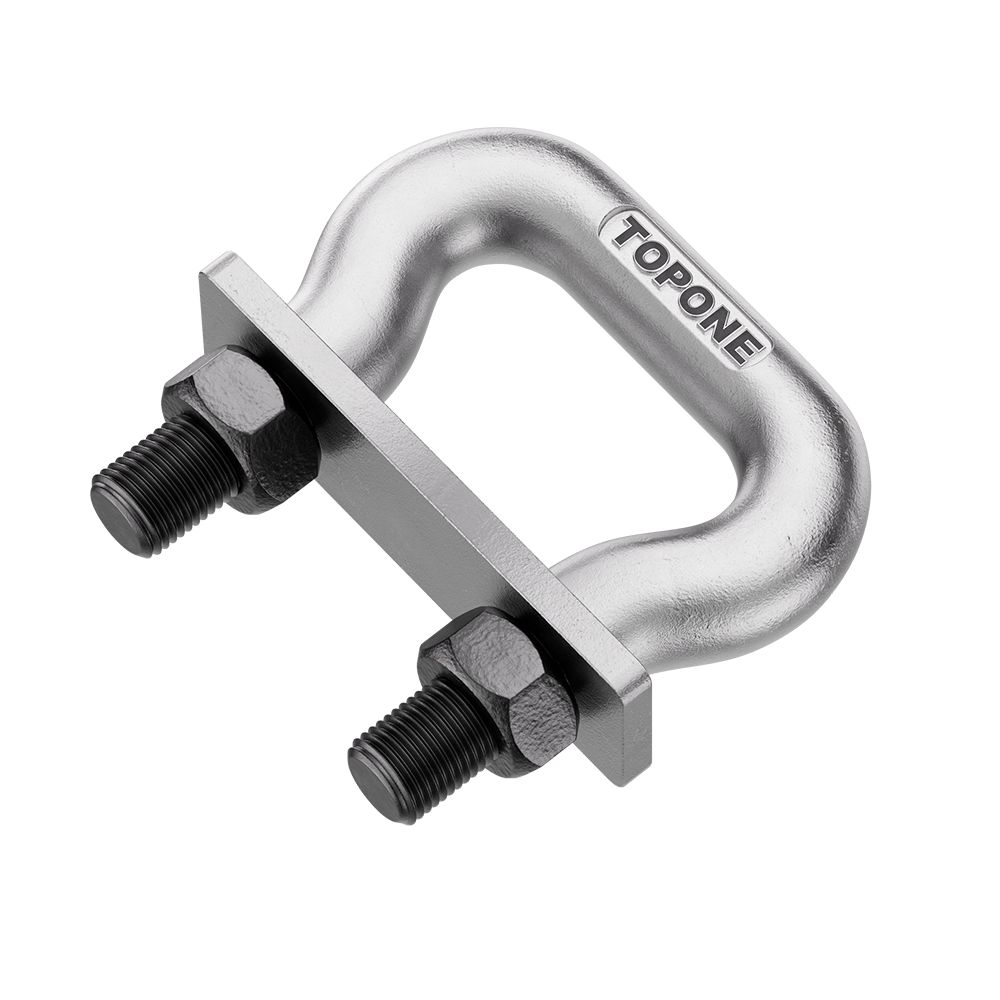

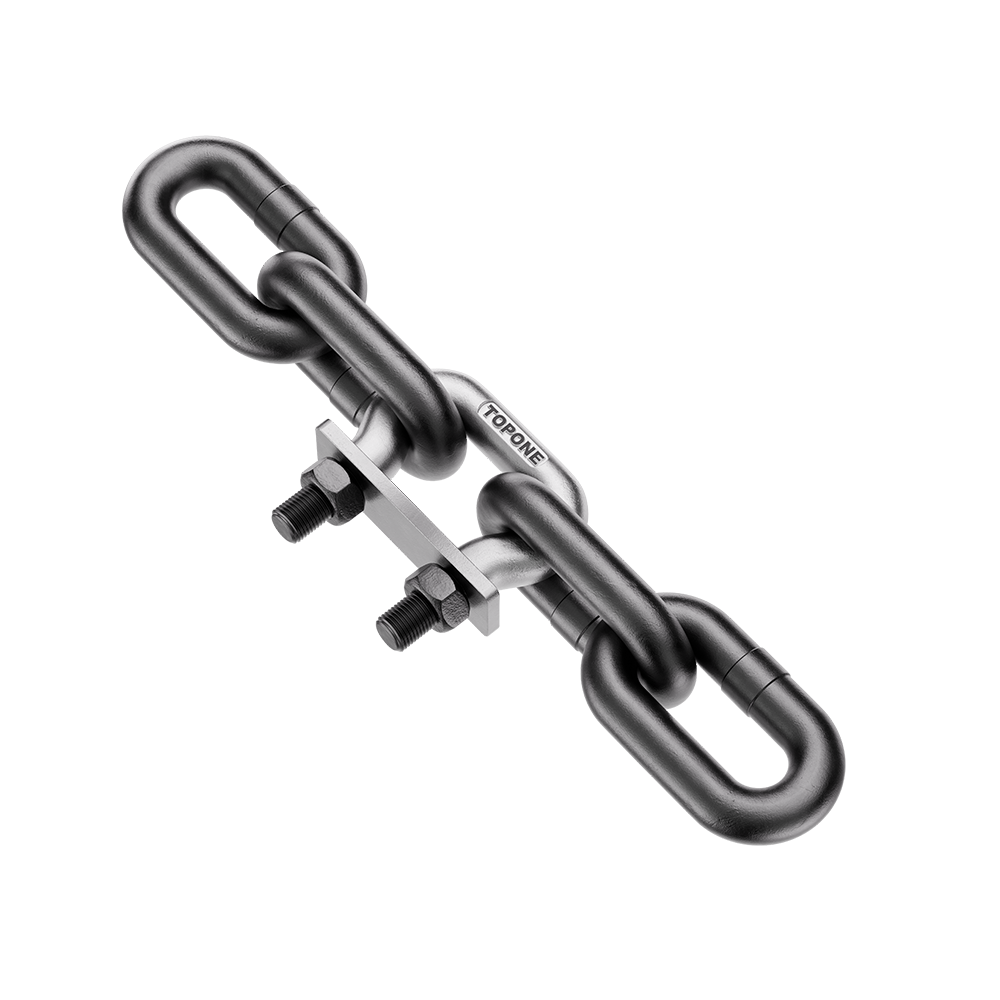

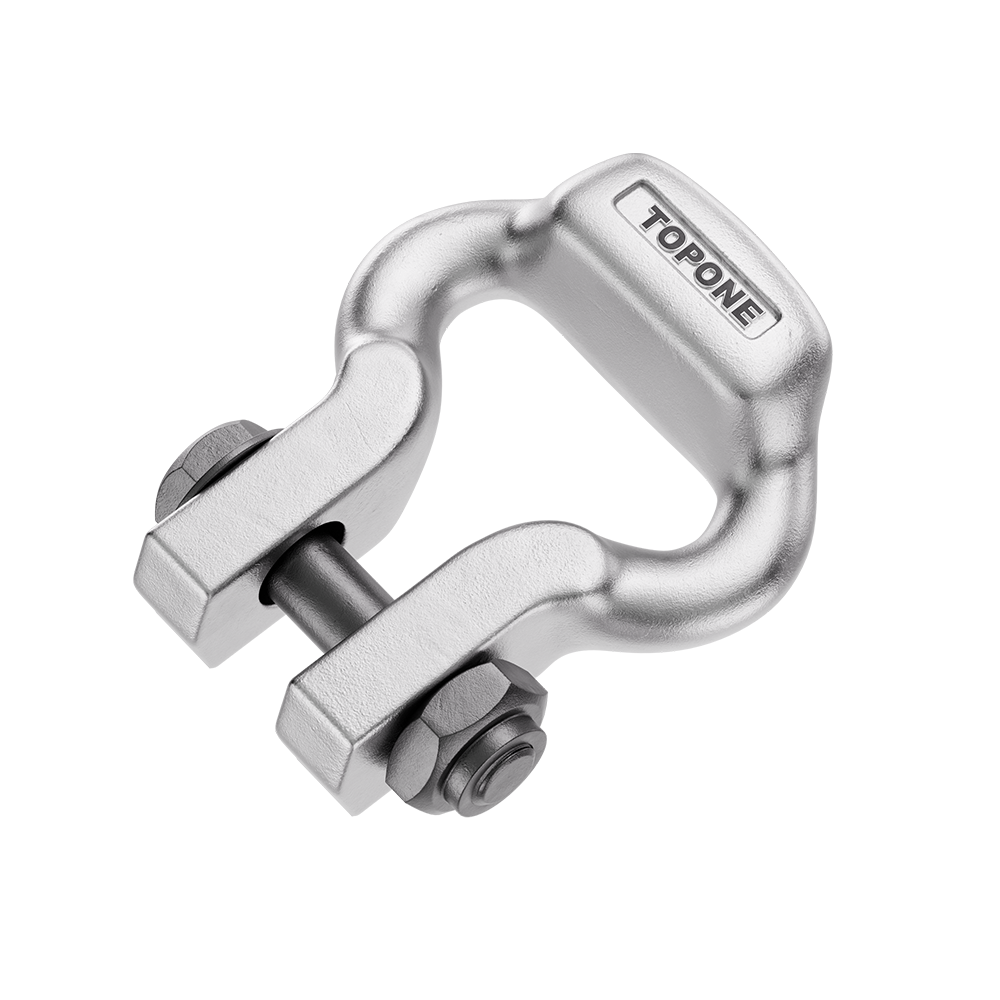

Bucket connection shackle produced by TOPONE®. It complies with DIN 745 & DIN 5699 and is made of forged alloy steel. It is more wear-resistant and durable through special heat treatment. Especially suitable for bucket links for conveyors for bulk materials.
Introduction
It is suitable for bulk material lifting and transmission applications in cement plants, coal-fired power plants, etc.Available with case hardening treatment. Available with matching nuts and clamping plates.
Parameter
|

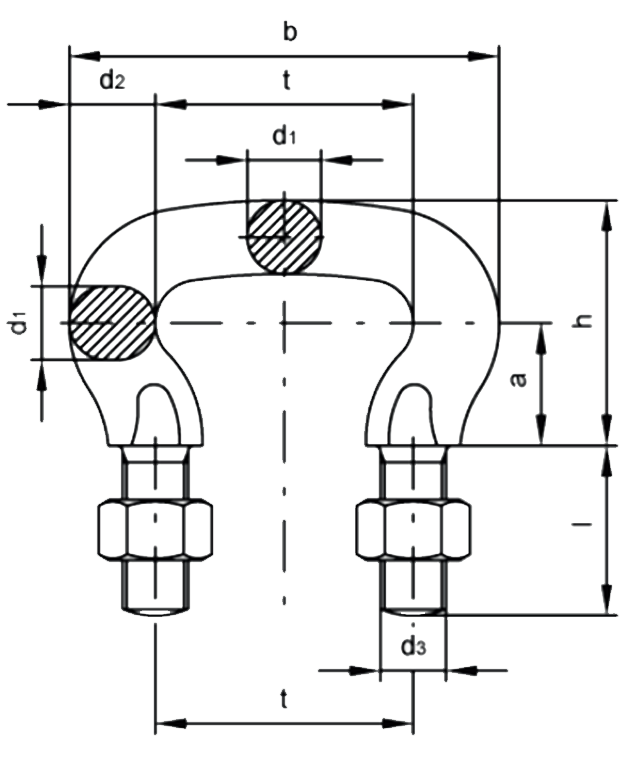

Dimension |
|||||||||
|
Bucket Size |
t |
a |
b |
d1 |
d2 |
d3 |
h |
l |
Weight |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
|
T45 |
45 |
20 |
73 |
11.5 |
14 |
M10 |
40 |
25 |
0.17 |
|
T56 |
56 |
25 |
92 |
15 |
18 |
M12 |
50 |
32 |
0.36 |
|
T63 |
63 |
30 |
105 |
18 |
21 |
M16 |
60 |
40 |
0.6 |
|
T70 |
70 |
34 |
116 |
20 |
23 |
M20 |
68 |
45 |
0.9 |
|
T80 |
80 |
37 |
132 |
23 |
26 |
M20 |
74 |
45 |
1.13 |
|
T91 |
91 |
43 |
149 |
26 |
29 |
M24 |
86 |
55 |
1.83 |
|
T105 |
105 |
50 |
173 |
30 |
34 |
M24 |
100 |
55 |
2.4 |
|
Mechanical Properties |
||||
|
Bucket Size |
RC4 |
RC5 |
||
|
Proof Load |
Breaking Load |
Proof Load |
Breaking Load |
|
|
(KN) |
(KN) |
(KN) |
(KN) |
|
|
T45 |
26 |
59 |
28 |
63 |
|
T56 |
45 |
99 |
46 |
107 |
|
T63 |
64 |
143 |
67 |
153 |
|
T70 |
79 |
176 |
82 |
189 |
|
T80 |
104 |
233 |
109 |
250 |
|
T91 |
133 |
298 |
139 |
319 |
|
T105 |
177 |
396 |
184 |
425 |
Standards
！This product is not for overhead lifting.
！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.
We follow standards：
Acc. to DIN 745，DIN 5699
Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.
Ambient temperature during use:
Min.: -40 ℃
Max.: 200 ℃
If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
