EN 818-7 Grade 80 T-DAT-DT Hoist Chain

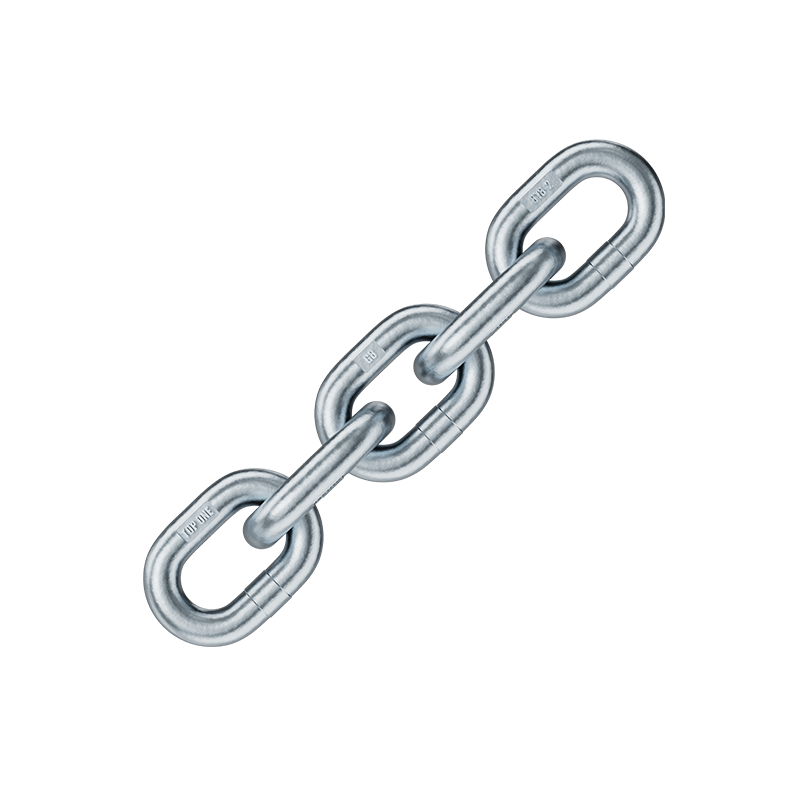

Short link chain for lifting by TOPONE®. Meets the requirements of EN818-7 T DAT DT for accuracy and surface hardness. High-precision calibration by fully automatic servo calibration machine. Chain carburized to increase surface hardness. Particularly suitable for electric chain hoists.

HOME > Products > Grade 80 Series >

Introduction

TOPONE® produces precision tolerance lifting chains that are particularly suitable for electric chain hoists. DAT and DT are carburized and can be supplied with zinc chrome electroplating. Available in drums or in bulk in any length.

Parameter

Lifting chain drawings

Diameter		Pitch		Inside Width min	Outside Width max	Weld Diameter max.	Hardness			Working Load Limit WLL			Proof Load	Breaking Load
d	Tolerance	p	Tolerance	b1	b2	ds	T	DAT	DT	T	DAT	DT	MPL	MBL
mm	mm	mm	mm	mm	mm	mm	HV	HV	HV	t	t	t	KN	KN
4	±0.2	12	±0.25	4.8	13.6	4.3	320HV₅	500HV₅	550HV₅	0.5	0.4	0.25	12.6	20.1
5	±0.2	15	±0.3	6.1	17.0	5.4	320HV₅	500HV₅	550HV₅	0.8	0.63	0.4	19.6	31.4
6	±0.2	18	±0.35	7.2	20.4	6.5	320HV₅	500HV₅	550HV₅	1.1	0.9	0.56	28.3	45.2
7	±0.3	21	±0.4	8.4	23.8	7.6	320HV₁₀	500HV₁₀	550HV₁₀	1.5	1.2	0.75	38.5	61.6
8	±0.3	24	±0.5	9.6	27.2	8.6	320HV₁₀	500HV₁₀	550HV₁₀	2.0	1.6	1.0	50.3	80.4
9	±0.4	27	±0.5	10.8	30.6	9.7	320HV₁₀	500HV₁₀	550HV₁₀	2.5	2.0	1.25	63.6	102
10	±0.4	30	±0.6	12.0	34.0	10.8	320HV₁₀	500HV₁₀	550HV₁₀	3.2	2.5	1.6	78.5	126
11	±0.4	33	±0.6	13.2	37.4	11.9	320HV₁₀	500HV₁₀	550HV₁₀	3.5	3.0	1.9	95	152
12	±0.5	36	±0.7	14.4	40.8	13.0	320HV₁₀	500HV₁₀	550HV₁₀	4.5	3.6	2.2	113	181
13	±0.5	39	±0.8	15.6	44.2	14.0	320HV₁₀	500HV₁₀	550HV₁₀	5.3	4.2	2.6	133	212
14	±0.6	42	±0.8	16.8	47.6	15.1	320HV₁₀	500HV₁₀	550HV₁₀	6.0	5.0	3.0	154	246
16	±0.6	48	±0.9	19.2	54.4	17.3	320HV₁₀	500HV₁₀	550HV₁₀	8.0	6.3	4.0	201	322
18	±0.9	54	±1.0	21.6	61.2	19.4	320HV₁₀	500HV₁₀	550HV₁₀	10.0	8.0	5.0	254	407
20	±1.0	60	±1.2	24.0	68.0	21.6	320HV₁₀	500HV₁₀	550HV₁₀	12.5	10.0	6.3	314	503
22	±1.1	66	±1.3	26.4	74.8	23.8	320HV₁₀	500HV₁₀	550HV₁₀	15.0	12.5	7.5	380	608

Work Load Limit (WLL) is the maximum load which the chains are designed to sustain in lifting use. The mean stress at this load is 200N/MM² (MPA) and is based on a 4:1 factor of safety.
Manufacturing Proof Force (MPF) is the force to which during manufacture the chain is subjected to. The mean stress at this load is 500N/MM² (MPA) which is 2.5 times the working load limit.
Minimum Breaking Load (MBL) is the minimum force of which the chain must withstand before failure. The mean stress at this load is 800N/MM² (MPA). The minimum elongation before failure is 10%.

Standards

！This product is not recommended for overhead lifting. It is strictly prohibited to use it in excess of the working load (WLL).

！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.

We follow standards：

EN 818-1

EN 818-7

Optional surface treatment: natural black, black electrophoresis, electro-galvanizing, Dacromet.

Ambient temperature during use:

Min.: -40 ℃

Max.: 200 ℃

DAT:

Min.: -30 ℃

Max.: 200 ℃

DT:

Min.: -15 ℃

Max.: 200 ℃

If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
