EN 818-4 Grade 100 Chain Lifting Slings
As a manufacturer of alloy chain slings, we are well aware that the quality of our products determines the safety of the user's project and life and health. We use special alloys (including elements such as CR, NI, MO) to manufacture alloy chain slings. We can provide customization and inspection of alloy chain slings.
Introduction
TOPONE® We provide 1 leg slings and 2 leg slings and 3 leg slings and 4 leg slings. Each chain sling has a different WLL (Weight Load Limit). Please ensure you have selected the correct chain sling for the load that you need to lift. All of our lifting slings are tested and certified before dispatch, but your chain sling may fail if used to lift too heavy a load.
All of our chain slings are tested with 2.5 times the WLL before leaving the factory. If you are not sure what weight chain sling to use for your application, please contact our sales staff. They will provide you with free advice.
Parameter
Item NO.
Diameter of
Lifting Chain

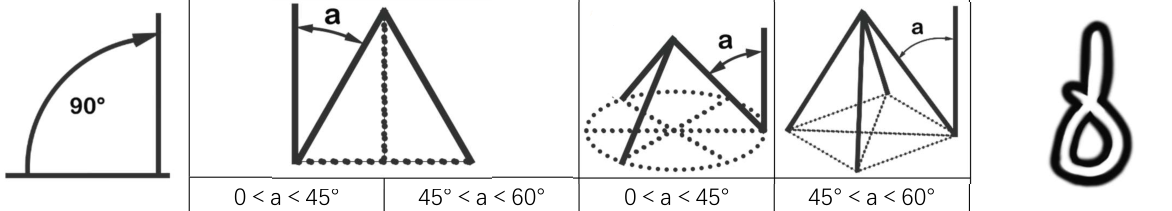

1 Leg
2 Legs
3 & 4 Legs
Continuous Sling
Factor 1.0
Factor 1.4
Factor 1.0
Factor 2.1
Factor 1.5
Factor 1.6
mm
ton
ton
ton
ton
ton
ton
TPL81841004
4
0.63
0.88
0.63
1.32
0.94
1.00
TPL81841005
5
1.00
1.40
1.00
2.10
1.50
1.60
TPL81841006
6
1.40
1.96
1.40
2.94
2.10
2.24
TPL81841007
7
1.90
2.66
1.90
3.99
2.85
3.04
TPL81841008
8
2.50
3.50
2.50
5.25
3.75
4.00
TPL818410010
10
4.00
5.60
4.00
8.40
6.00
6.40
TPL818410013
13
6.70
9.38
6.70
14.07
10.05
10.72
TPL818410016
16
10.3
14.4
10.3
21.6
15.40
16.4
TPL818410018
18
12.5
17.5
12.5
26.2
18.75
20.0
TPL818410019
19
14.0
19.6
14.0
29.4
21.00
22.4
TPL818410020
20
16.0
22.4
16.0
33.6
24.00
25.6
TPL818410022
22
19.4
27.1
19.4
40.7
29.10
31.0
TPL818410026
26
26.5
37.1
26.5
55.6
39.70
42.4
TPL818410028
28
30.5
42.7
30.5
64.0
45.70
48.8
TPL818410030
30
35.5
49.7
35.5
74.5
53.20
56.8
TPL818410032
32
40.0
56.0
40.0
84.0
60.60
64.0
TPL818410036
36
50.0
70.0
50.0
105.0
75.00
80.0
TPL818410038
38
56.5
78.4
56.5
118.6
84.70
90.4
TPL818410040
40
62.5
87.5
62.5
131.2
93.70
100.0
TPL818410045
45
81.0
113.4
81.0
170.1
121.50.
129.6
TPL818410050
50
98.0
137.2
98.0
205.8
147.00
156.8
- Work Load Limit (WLL) is the maximum load which the chains are designed to sustain in lifting use. The mean stress at this load is 250N/MM² (MPA) and is based on a 4:1 factor of safety.
- Manufacturing Proof Force (MPF) is the force to which during manufacture the chain is subjected to. The mean stress at this load is 625N/MM² (MPA) which is 2.5 times the working load limit.
- Minimum Breaking Load (MBL) is the minimum force of which the chain must withstand before failure. The mean stress at this load is 1000N/MM² (MPA). The minimum elongation before failure is 25%.
Standards
！This product can be used for Overhead Lfting. It is strictly prohibited to use it in excess of the working load (WLL).
！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.
We follow standards：
EN818-1
EN818-4
Pas 1061
DIN 21061
NACM2010
Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.
Chain lifted loads should never be transported or suspended over people.
Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.
Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.
When mixing chain and components such as hooks and links, all should be rated at the work load limit of the lowest rated component or chain.
Ambient temperature during use:
Min.: -40 ℃
Max.: 200 ℃
If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
Q & A
- Can you customize chain slings? What configurations can I choose?
- Yes, all chain slings are custom made, you can choose any length and any number of legs.
- I can't understand your datasheets, how do I know which configurations I need?
- First, you need to confirm the following parameters. Application scenario? Safe working load? How many legs? Hook or ring? You can contact our staff at any time, they will give you professional advice free of charge.
- How can I be sure your chain slings are safe?
- Each chain sling we produce has a unique code. We can trace it back to the raw materials based on this code. We ensure that each chain sling is verified to 2.5 times the safe working load before leaving the factory. We ensure that each batch of chain slings is tested to 4 times the safe working load (breaking load test) before leaving the factory.
- What is the difference between grade 100 and grade 80 chain slings? Which one should I choose?
- Grade 100 chain slings have better performance than grade 80 chain slings. Of course, the price is definitely higher. Under the same working load, grade 100 chain slings are 25~35% lighter than grade 80 chain slings. They are also more resistant to extreme temperatures and have higher elongation.
