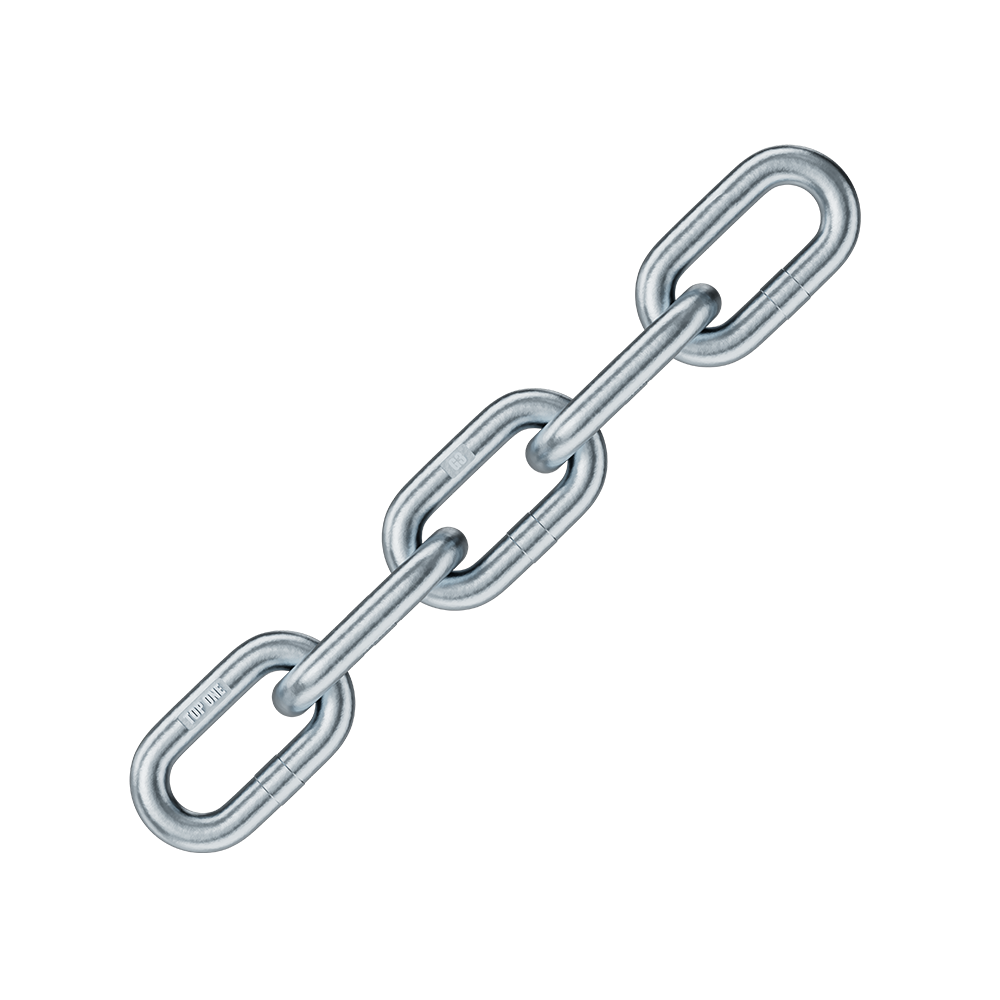

NACM2010 Coil Chain-Straight link

Long pitch straight link, general utility chain made of carbon steel.

Not to be used in overhead lifting.

NACM2010 Coil Chain-Straight link
Introduction
Parameter

Long link chain


Diameter

Inside   Length

Inside   Width

Working   Load Limit (Max.)

Proof   Load (Min.)

Min. Breaking   Load

d

p

b1

WLL

MPF

MBL

(inch)

(mm)

(inch)

(mm)

(inch)

(mm)

(lbs)

(kg)

(lbs)

(KN)

(lbs)

(KN)

0.120

3.0

1.11

28.1

0.21

5.32

205

93

410

1.82

820

3.64

0.135

3.4

1.17

29.6

0.24

6.09

255

116

510

2.27

1020

4.53

0.148

3.8

1.18

29.9

0.26

6.59

310

141

620

2.76

1240

5.51

0.162

4.1

1.25

31.7

0.28

7.10

370

168

740

3.29

1480

6.58

0.177

4.5

1.25

31.7

0.31

7.86

440

200

880

3.91

1760

7.82

0.192

4.9

1.26

31.9

0.34

8.62

520

236

1040

4.63

2080

9.24

0.207

5.3

1.30

32.9

0.36

9.13

605

274

1210

5.38

2420

10.76

0.218

5.5

1.39

35.2

0.38

9.64

670

304

1340

5.96

2680

11.91

0.250

6.4

1.52

38.5

0.44

11.20

880

399

1760

7.83

3520

15.64
