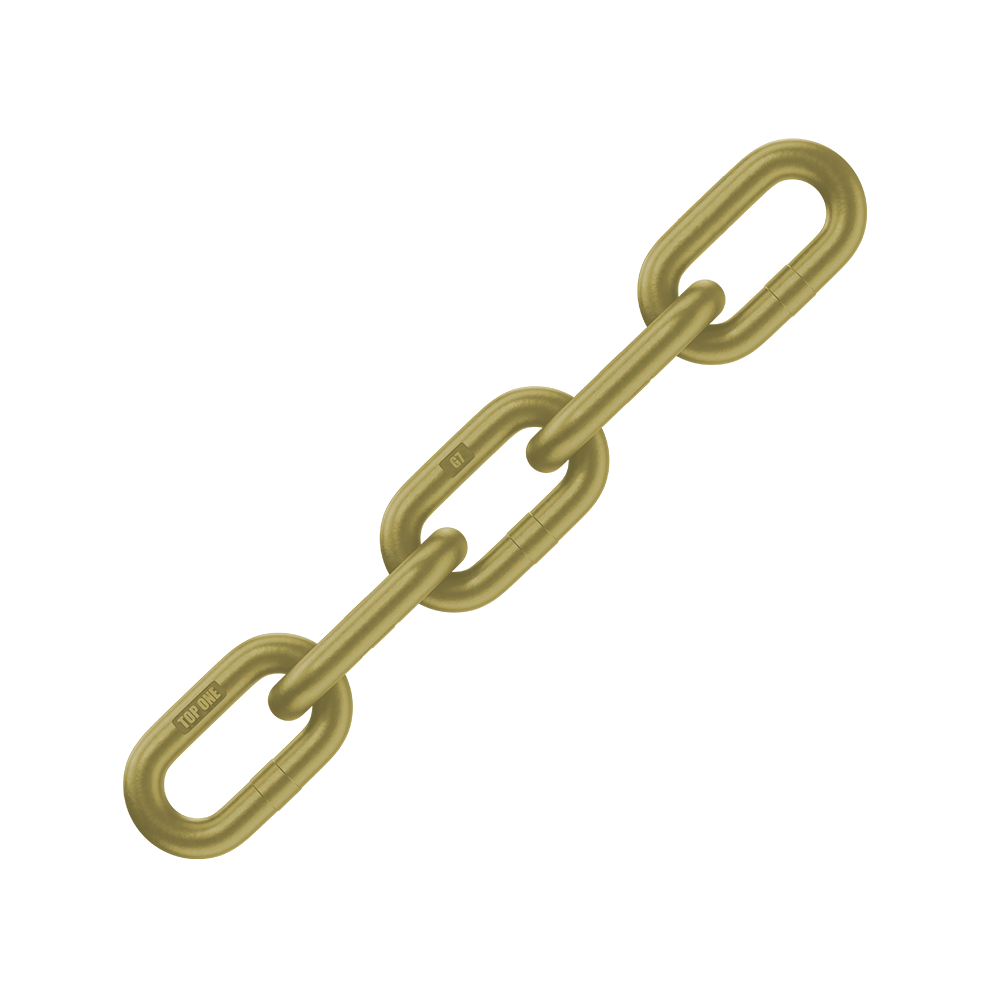

NACM2010 Grade 70 Transport Chain
A high quality, high strength carbon steel chain, heat treated,Used for load securement.Not to be used in overhead lifting.Meets Department Of Transportation Regulations.The surface is yellow chromate color.TOPONE® Grade 70 Chain is the chain of choice for load binding applications. It is also well suited for tie-downs, towing and logging operations. Its strength to weight ratio exceeds that of Proof Coil and High Test chain.
Introduction
Grade 70 Cargo Chain is used in the following industries: Agriculture & Forestry, Construction, Bridge Builders, Highway and Street, Military, Transportation & Utilities - Power, Water, Sewer & Pipe.
Parameter
|
Chain Size d |
Inside Length max. p |
Inside Width min. b1 |
Working Load Limit WLL |
Proof Load MPL |
Breaking Load MBL |
||||||
|
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(lbs) |
(kg) |
(lbs) |
(KN) |
(lbs) |
(KN) |
|
1/4 |
7.0 |
1.24 |
31.5 |
0.38 |
9.8 |
3150 |
1430 |
6300 |
28.0 |
12600 |
56.0 |
|
5/16 |
8.7 |
1.29 |
32.8 |
0.44 |
11.2 |
4700 |
2130 |
9400 |
41.8 |
18800 |
83.6 |
|
3/8 |
10.0 |
1.38 |
35.0 |
0.55 |
14.0 |
6600 |
2990 |
13200 |
58.7 |
26400 |
117.4 |
|
7/16 |
11.9 |
1.64 |
41.6 |
0.65 |
16.6 |
8750 |
3970 |
17500 |
77.8 |
35000 |
155.4 |
|
1/2 |
13.0 |
1.79 |
45.5 |
0.72 |
18.2 |
11300 |
5130 |
22600 |
100.4 |
45200 |
200.8 |
|
5/8 |
16.0 |
2.20 |
56.0 |
0.79 |
20.0 |
15800 |
7170 |
31600 |
140.4 |
63200 |
280.8 |
|
3/4 |
20.0 |
2.76 |
70.0 |
0.98 |
25.0 |
24700 |
11200 |
49400 |
219.6 |
98800 |
439.2 |
Standards
！This product is strictly prohibited from being used for overhead lifting.
！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.
We follow standards：
NACM2010
Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.
Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.
Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.
When mixing chain and components such as hooks and links, all should be rated at the work load limit of the lowest rated component or chain.
Ambient temperature during use:
Min.: -40 ℃
Max.: 200 ℃
If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.
