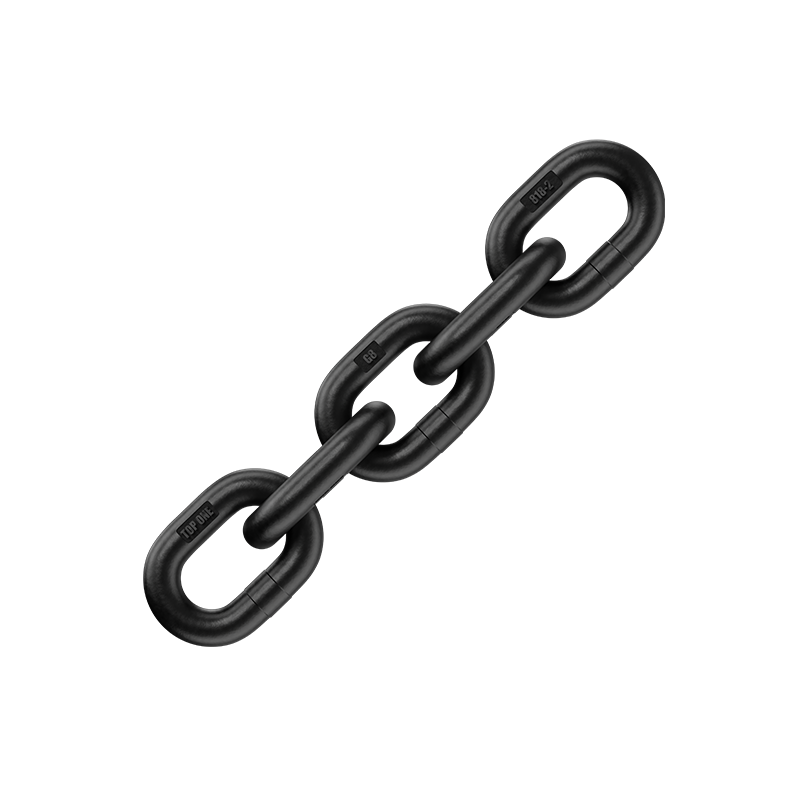

NACM2010 Grade 80 Alloy Chain

Premium quality, high strength alloy chain, heat treated, used in a variety of sling and tie down applications.For overhead lifting applications, only Alloy Chain should be used.Comply with US standards. Each chain link is tested at 2.5 times the working load before leaving the factory.

NACM2010 Grade 80 Alloy Chain
Introduction

TOPONE® NACM2010 80 grade alloy chain is designed for overhead lifting. It meets the latest guidelines of the National Association of Chain Manufacturers (NACM)

Parameter

base64_image

Chain Size

d

Inside Length

max.

p

Inside Width Range

b1

Working Load Limit

WLL

Proof Load

MPL

Breaking Load

MBL

(inch)

(mm)

(inch)

(mm)

(inch)

(mm)

(lbs)

(kg)

(lbs)

(KN)

(lbs)

(KN)

7/32

5.5

0.69

17.6

0.281~0.325

7.14~8.25

2100

970

4200

19.0

8400

38.0

9/32

7.0

0.90

22.9

0.375~0.430

9.53~10.92

3500

1570

7000

30.8

14000

61.6

5/16

8.0

1.04

26.4

0.430~0.500

10.92~12.70

4500

2000

9000

40.3

18000

80.6

3/8

10.0

1.26

32.0

0.512~0.600

13.00~15.20

7100

3200

14200

63.0

28400

126.0

1/2

13.0

1.64

41.6

0.688~0.768

17.48~19.50

12000

5400

24000

107.0

48000

214.0

5/8

16.0

2.02

51.2

0.812~0.945

20.63~24.00

18100

8200

36200

161.0

72400

322.0

3/4

20.0

2.52

64.0

0.984~1.180

25.00~30.00

28300

12800

56600

252.0

113200

504.0

7/8

22.0

2.77

70.4

1.080~1.300

27.50~33.00

34200

15500

68400

305.0

136800

610.0

1

26.0

3.28

83.2

1.280~1.540

32.50~39.00

47700

21600

95400

425.0

190800

850.0

1-1/4

32.0

4.03

102.4

1.580~1.890

40.00~48.00

72300

32800

144600

644.0

289200

1288.0

Standards

!This product can be used for Overhead Lfting. It is strictly prohibited to use it in excess of the working load (WLL).

!Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.

We follow standards:

NACM2010


Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.


Chain lifted loads should never be transported or suspended over people.

Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.

Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.

When mixing chain and components such as hooks and links, all should be rated at the work load limit of the lowest rated component or chain.


Ambient temperature during use:

Min.: -40 ℃

Max.: 200 ℃

If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.

Q & A
What is the safety factor of Grade 80 chain?
4:1. Of course in some cases you may need 6:1 or 8:1, if you are not sure, please contact our sales staff.
What grade chain is the strongest?
The strongest chain grade at present is Grade 120. The mainstream chain grades in the market are Grade 100 and Grade 80. In general, Grade 80 chain can meet normal use.
How can I be sure your chain slings are safe?
Each chain sling we produce has a unique code. We can trace it back to the raw materials based on this code. We ensure that each chain sling is verified to 2.5 times the safe working load before leaving the factory. We ensure that each batch of chain slings is tested to 4 times the safe working load (breaking load test) before leaving the factory.
What is the difference between grade 100 and grade 80 chain slings? Which one should I choose?
Grade 100 chain slings have better performance than grade 80 chain slings. Of course, the price is definitely higher. Under the same working load, grade 100 chain slings are 25~35% lighter than grade 80 chain slings. They are also more resistant to extreme temperatures and have higher elongation.
