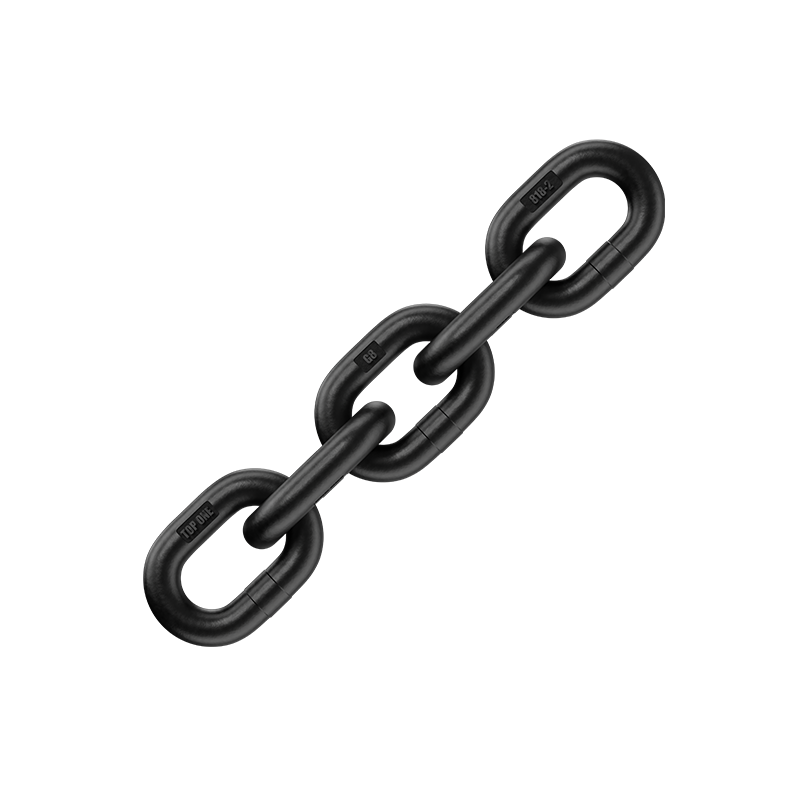

NACM2010 Grade 80 Chain

Premium, high strength alloy chain, heat treated for use in a variety of sling and tie down applications.

For overhead lifting applications, use only alloy chain. 100% compliant with NACM2010 requirements for Grade 80 chain.

NACM Grade 80 Chain Overhead Lfting Tow & Binder Chain Medium Tolerance

Introduction

TOPONE® NACM2010 80 grade alloy chain is designed for overhead lifting. It meets the latest guidelines of the National Association of Chain Manufacturers (NACM)

Parameter

Chain Size d		Inside Length max. p		Inside Width Range Range b1		Working Load Limit WLL		Proof Load MPL		Breaking Load MBL
(inch)	(mm)	(inch)	(mm)	(inch)	(mm)	(lbs)	(kg)	(lbs)	(KN)	(lbs)	(KN)
7/32	5.5	0.69	17.6	0.281~0.325	7.14~8.25	2100	970	4200	19.0	8400	38.0
9/32	7.0	0.90	22.9	0.375~0.430	9.53~10.92	3500	1570	7000	30.8	14000	61.6
5/16	8.0	1.04	26.4	0.430~0.500	10.92~12.70	4500	2000	9000	40.3	18000	80.6
3/8	10.0	1.26	32.0	0.512~0.600	13.00~15.20	7100	3200	14200	63.0	28400	126.0
1/2	13.0	1.64	41.6	0.688~0.768	17.48~19.50	12000	5400	24000	107.0	48000	214.0
5/8	16.0	2.02	51.2	0.812~0.945	20.63~24.00	18100	8200	36200	161.0	72400	322.0
3/4	20.0	2.52	64.0	0.984~1.180	25.00~30.00	28300	12800	56600	252.0	113200	504.0
7/8	22.0	2.77	70.4	1.080~1.300	27.50~33.00	34200	15500	68400	305.0	136800	610.0
1	26.0	3.28	83.2	1.280~1.540	32.50~39.00	47700	21600	95400	425.0	190800	850.0
1-1/4	32.0	4.03	102.4	1.580~1.890	40.00~48.00	72300	32800	144600	644.0	289200	1288.0

Work Load Limit (WLL) is the maximum load which the chains are designed to sustain in lifting use. The mean stress at this load is 200N/MM² (MPA) and is based on a 4:1 factor of safety.
Manufacturing Proof Force (MPF) is the force to which during manufacture the chain is subjected to. The mean stress at this load is 500N/MM² (MPA) which is 2.5 times the working load limit.
Minimum Breaking Load (MBL) is the minimum force of which the chain must withstand before failure. The mean stress at this load is 800N/MM² (MPA). The minimum elongation before failure is 20%.

Standards

！This product can be used for Overhead Lfting. It is strictly prohibited to use it in excess of the working load (WLL).

！Any surface coating will affect the mechanical properties of the chain.Please ask staff for details.

We follow standards：

NACM2010

Optional surface treatment: natural black, powder coating, black electrophoresis, electro-galvanizing, hot-dip galvanizing, Dacromet.

Chain lifted loads should never be transported or suspended over people.

Chain should be inspected every six months for cracks, gouges, wear, elongation, nicks, and suitability.

Chain performance can be effected by excessive temperatures or exposure to chemically active environments such as acids, corrosive liquids or fumes.

When mixing chain and components such as hooks and links, all should be rated at the work load limit of the lowest rated component or chain.

Ambient temperature during use:

Min.: -40 ℃

Max.: 200 ℃

If the application scenario exceeds or is lower than the recommended operating temperature, please consult the staff to see if it is feasible.

Q & A

What is the safety factor of Grade 80 chain?: 4:1. Of course in some cases you may need 6:1 or 8:1, if you are not sure, please contact our sales staff.

What grade chain is the strongest?: The strongest chain grade at present is Grade 120. The mainstream chain grades in the market are Grade 100 and Grade 80. In general, Grade 80 chain can meet normal use.

How can I be sure your chain slings are safe?: Each chain sling we produce has a unique code. We can trace it back to the raw materials based on this code. We ensure that each chain sling is verified to 2.5 times the safe working load before leaving the factory. We ensure that each batch of chain slings is tested to 4 times the safe working load (breaking load test) before leaving the factory.

What is the difference between grade 100 and grade 80 chain slings? Which one should I choose?: Grade 100 chain slings have better performance than grade 80 chain slings. Of course, the price is definitely higher. Under the same working load, grade 100 chain slings are 25~35% lighter than grade 80 chain slings. They are also more resistant to extreme temperatures and have higher elongation.
