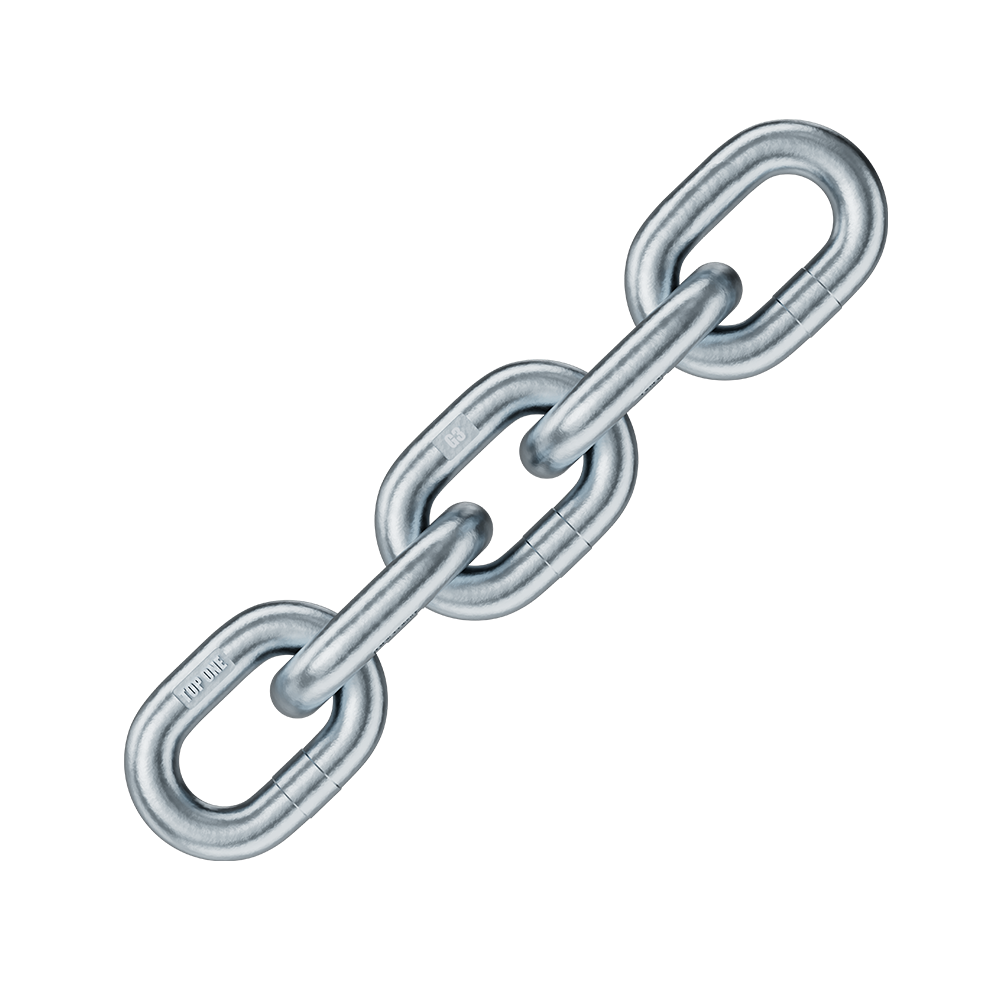

NACM2010 Passing Link Chain
Short, wide link chain which resists kinking or tangling, made of
carbon steel. Not to be used in overhead lifting.
Introduction
Parameter
|
Diameter |
Inside Length |
Inside Width |
Working Load Limit (Max.) |
Proof Load (Min.) |
Min. Breaking Load |
||||||
|
d |
p |
b1 |
WLL |
MPF |
MBL |
||||||
|
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(lbs) |
(kg) |
(lbs) |
(KN) |
(lbs) |
(KN) |
|
0.192 |
4.9 |
0.875 |
22.2 |
0.47 |
11.9 |
450 |
204 |
900 |
400 |
1800 |
8.01 |
|
0.218 |
5.5 |
0.875 |
22.2 |
0.50 |
12.7 |
600 |
272 |
1200 |
534 |
2400 |
10.68 |
