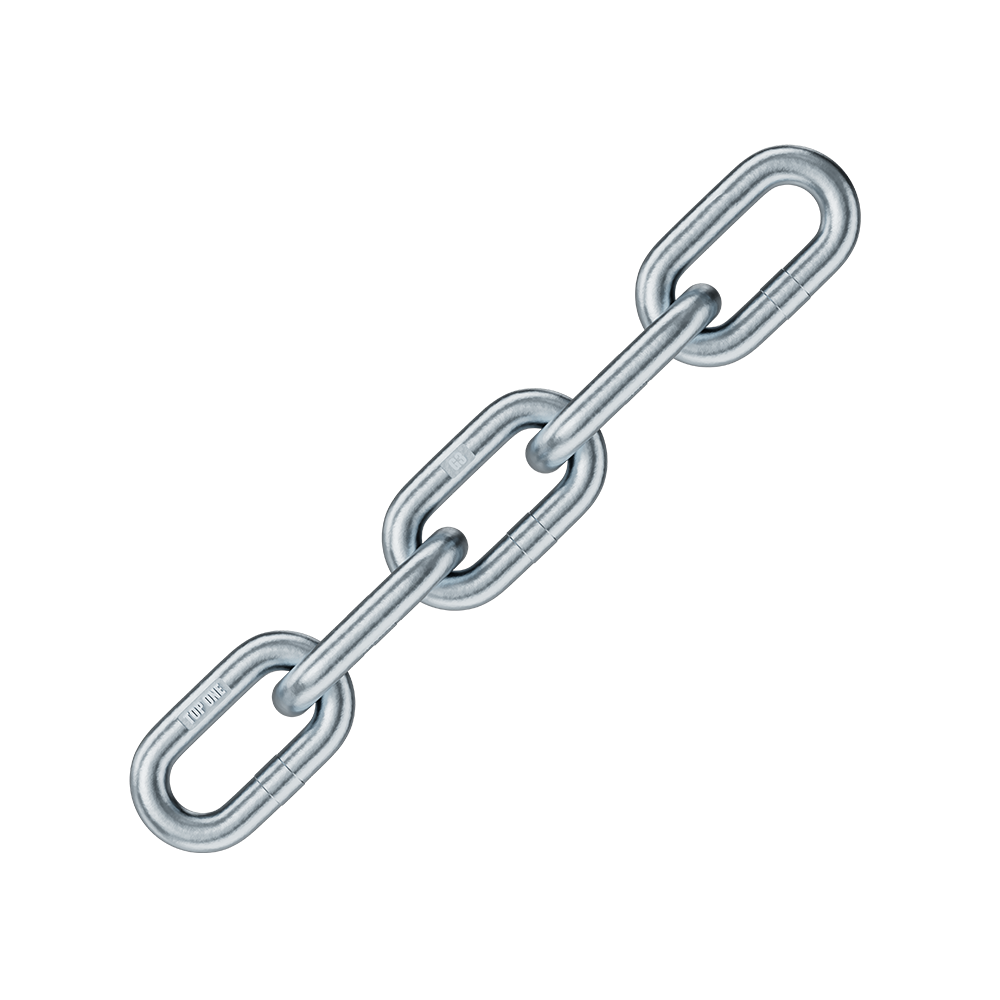

NACM2010 Stainless Steel Chain
Widely used in marine, chemical industry,
food processing and some extreme environments.
Material: AISI 304, AISI 316, AISI 316L
Proof load design factor 4:1
Warning: Do not exceed the working load
limit!
Not suitable for overhead lifting!
Introduction
Parameter
|
Diameter |
Inside Length (Max.) |
Inside Width (Min.) |
Working Load Limit (Max.) |
Proof Load (Min.) |
Min.Breaking Load |
||||||
|
d |
p |
b1 |
WLL |
MPF |
MBL |
||||||
|
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
(lbs) |
(kg) |
(lbs) |
(KN) |
(lbs) |
(KN) |
|
5/32 |
4.0 |
0.94 |
23.9 |
0.25 |
6.4 |
500 |
230 |
1000 |
4.5 |
2000 |
9.0 |
|
3/16 |
5.0 |
0.98 |
24.8 |
0.30 |
7.7 |
930 |
420 |
1860 |
8.3 |
3720 |
16.6 |
|
7/32 |
5.5 |
0.98 |
24.8 |
0.25 |
6.4 |
1200 |
540 |
2400 |
10.7 |
4800 |
21.4 |
|
1/4 |
6.5 |
1.24 |
31.5 |
0.30 |
7.7 |
1570 |
710 |
3140 |
14.0 |
6280 |
28.0 |
|
9/32 |
7.0 |
1.24 |
31.5 |
0.34 |
8.6 |
2000 |
910 |
4000 |
17.8 |
8000 |
35.6 |
|
5/16 |
8.0 |
1.29 |
32.8 |
0.38 |
9.8 |
2400 |
1090 |
4800 |
21.4 |
9600 |
42.8 |
|
3/8 |
10.0 |
1.38 |
35.0 |
0.55 |
14.0 |
3550 |
1610 |
7100 |
31.6 |
14200 |
63.2 |
|
7/16 |
12.0 |
1.64 |
41.6 |
0.65 |
16.6 |
5400 |
2450 |
10800 |
48.1 |
21600 |
96.2 |
|
1/2 |
13.0 |
1.79 |
45.5 |
0.62 |
15.8 |
6500 |
2950 |
13000 |
58.0 |
26000 |
116.0 |
|
5/8 |
16.0 |
2.20 |
56.0 |
0.79 |
20.0 |
9800 |
4450 |
19600 |
87.0 |
39200 |
174.0 |
|
3/4 |
20.0 |
2.85 |
72.4 |
0.98 |
31.7 |
15000 |
6820 |
30000 |
134.0 |
60000 |
268.0 |
|
1 |
26.0 |
3.58 |
90.0 |
1.25 |
55.0 |
23250 |
10570 |
46500 |
207.0 |
93000 |
414.0 |
